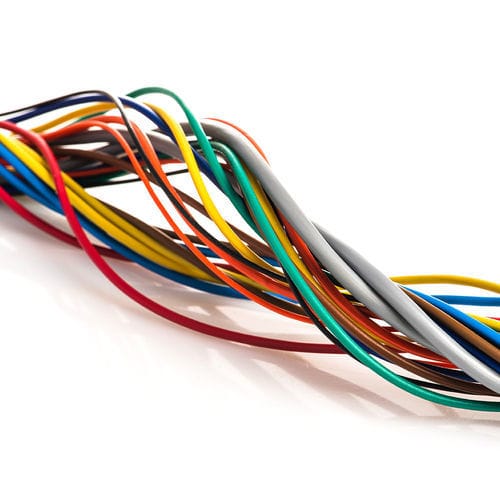

Signal cable harness

power distribution

Plug and play – lean integration
Tecnotion supplies motors with connectorized cables to provide a plug-and-play solution that shortens lead times, lowers integration costs and reduces commissioning errors through internal quality control and testing of the assembled motor and connector.

Perfect fit
Cable construction, materials and routing are adapted to the application specifications and operating environment to ensure the motor fits the installation and functional requirements.

Connectors

• Plug & Play connectorization for lean manufacturing and rapid integration
• Motors can be delivered including connectors for sensors and power to simplify installation
• Factory testing of motor + connector assembly reduces field commissioning errors

Cable Exits

• Cable outlet options support compact housings and tight installation spaces
• Exit directions configurable to save space and simplify routing: radial, axial, tangential, lateral and dorsal

Change of cable

• Cable materials and construction selectable to match environmental demands
• Options for higher resistance to temperature, oil and other liquids for harsh environments

Cable length

• Point-to-point connection: cable lengths can be shortened or extended to match the next connection point

Features / technical specifications

• Service: cable confection for motors (connectorized assemblies)
• Connectorization: available for sensors and power; motor supplied including connector on request
• Assembly testing: internal quality control and testing of motor + connector
• Exit directions: radial, axial, tangential, lateral, dorsal (configurable)
• Cable materials: selectable for resistance to temperature, oil and liquids
• Length customization: shortened or lengthened for proper point-to-point connection
• Designed for lean manufacturing: reduced lead times and simplified integration
