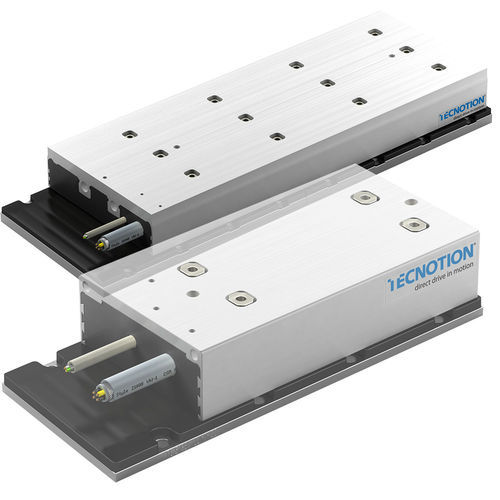

AC motor

synchronous3-phase680V

Overview
Modifications to motor dimensions and magnet components are offered to adapt linear-motor systems to specific machine architectures and environmental constraints. Options focus on magnet track geometry, plate materials and transport configurations for improved integration in vacuum, high-temperature and non-linear layouts.

Magnet tracks

• Custom lengths and end configurations
• Curved and non-linear track geometries
• Performance tuning for higher thrust or efficiency
• Plates and components prepared for vacuum environments
• High-temperature compatible plate materials

Curved magnet track
Curved magnet track designs enable closed loops and complex trajectories beyond linear travel, allowing compact layouts and continuous transport paths where straight tracks are impractical.

Closed track transport
Closed-track transport systems (continuous-loop configurations) reduce inefficiencies associated with reciprocating motion and can increase throughput, simplify indexing and enable space-saving machine arrangements.

Yokes
Magnetic yokes are available with customised lengths and curvatures and can be supplied in vacuum- and high-temperature-capable versions. UMX/ULX customised yokes are offered as an upgrade path when slightly higher power or modified magnetic coupling is needed.

Applications

• Semiconductors and flat-panel display handling
• Aerospace and scientific equipment
• Machine tools, digital cutting and printing
• Robotics, life sciences and medical integration
• Woodworking, platforms and system-level installations
• Vacuum and cleanroom applications

Product selection & simulation tools

• Product filter to select motor variants based on application constraints
• Online simulation tool to validate track geometry, force and thermal behavior for selected configurations

Technical specifications

• Customisable magnet track lengths, curvature and performance tuning
• Support for vacuum-suitable components (plates and yokes)
• High-temperature plate and component options
• Curved magnet plate designs for closed-track and non-linear transport
• Closed-track transport configurations for continuous unidirectional movement
• UMX/ULX customised yokes available for increased power or modified coupling
• Applicable to a range of machine architectures requiring modified motor dimensions
