Permanent magnet motor

for extreme conditionsfor harsh environmentsfor robotics

Overview Tecnotion presents solutions tailored to demanding application environments such as cleanrooms, vacuum systems and chemical environments. The offering covers packaging, motor system concepts and customised support for vacuum and temperature-challenged applications.

Cleanroom packaging Many semiconductor applications demand high cleanliness. Tecnotion offers products that meet these cleanliness levels, providing suitable cleanroom packaging to enable controlled and efficient logistic flows into the cleanroom.

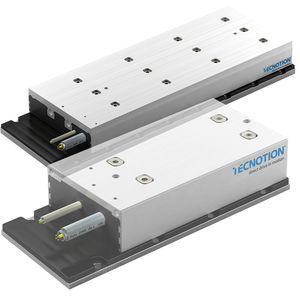

Moving magnet systems Moving magnet linear motors provide non-contact, particle-free transport and are suitable for the most demanding processes. These systems are designed for cleanroom, vacuum and chemically aggressive environments where non-contact operation and low particle generation are critical.

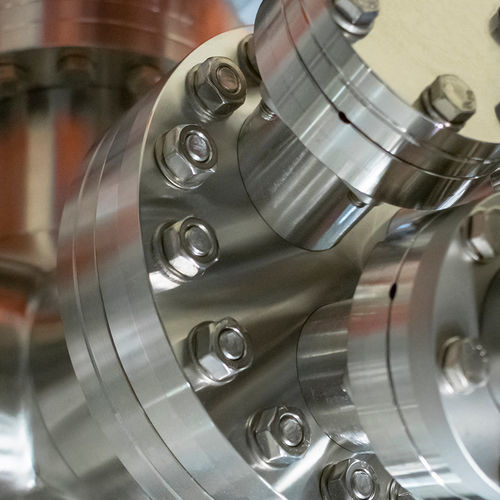

Vacuum rated iron core plates For applications that require vacuum solutions to minimise unwanted chemical reactions or contamination, Tecnotion supplies vacuum-rated iron core plates and linear motors that can be placed inside the vacuum chamber. Placing the motor inside vacuum avoids the need for feedthroughs.

Customization for vacuum In addition to catalog vacuum motors, Tecnotion provides custom products and services for vacuum applications. Typical considerations and services include adapting motor parts to fit constrained motor envelopes inside vacuum chambers, providing solutions for e-beam and ion-beam applications to reduce magnetic stray fields, and offering design-in support for vacuum motors addressing temperature challenges, outgassing budgets and strayfield simulations.

High / low temperature Many processes operate outside normal temperature ranges. Tecnotion offers multiple approaches to improve the maximum or minimum operating temperature of components used in the motor assemblies and to ensure reliable operation under thermal extremes.

Tools and resources Tecnotion provides a product filter to find the most suitable motor by application criteria and an online simulation tool to help select the right motor in a few steps. The site also references a small FAQ covering topics such as the benefits of linear motors and options when a standard motor is not sufficient.

Characteristics / Technical specifications

• Application areas: Cleanroom, Display, Semiconductors, Science & aerospace, Machine tooling, Digital cutting, Printing, Robotics, Life science, Woodworking, Stages and system solutions, Vacuum applications
• Cleanroom packaging available for high cleanliness logistics
• Moving magnet linear motor options for non-contact, particle-free transport in cleanroom, vacuum and chemical environments
• Vacuum-rated iron core plates and motors capable of being placed fully inside vacuum chambers (no feedthrough required)
• Customization offerings: alternate motor parts for limited motor envelopes, solutions for e-beam and ion-beam to reduce stray fields
• Design-in support: temperature challenge mitigation, outgassing budget consideration, strayfield simulation support
• Temperature adaptations to extend operational max/min of parts
• Support tools: product filter and simulation tool to select suitable motors
