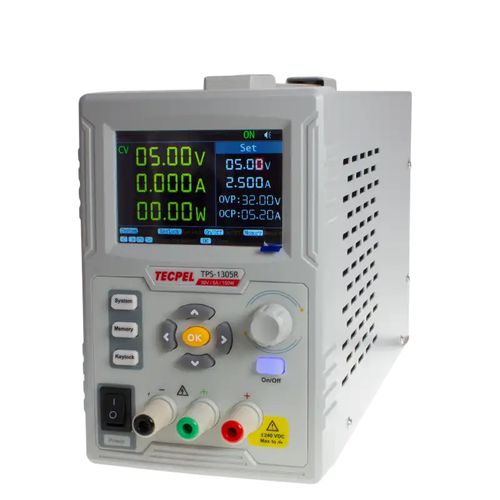

Tabletop power supply TPS-1305RAC/DCsingle-outputwith overload protection
Add to favorites
Compare this product
Characteristics
- Mounting / format
- tabletop
- Type
- AC/DC
- Output
- single-output
- Protection
- with overload protection
- Applications
- laboratory
- Other characteristics
- programmable
- Input voltage
110 V, 220 V
- Output voltage
Min.: 0 V
Max.: 30 V
- Current
Min.: 0 A
Max.: 5 A
Description
30V/5A Programmable DC Power supply
TPS-1305R is a programmable DC power supply with a fine-tuning voltage of 1mV and a current of 10mA resolution, and can store 5 sets of parameters, which can be quickly switched in the output. In addition to the output switch, there is also a voltage and current overload protection function to avoid abnormal voltage or current output, which can disconnect the power supply to protect the instrument and equipment.
Measurement Specification
Voltage Output : 0 to 30V
Current Output : 0~5A ±(≤0.1% + 10mA)
Display Accuracy : ≤0.1%±20mV / ≤0.1%±10mA
Load Regulation : ≤30mV / ≤30mA
Ripple & Noise : ≤30mVp-p / ≤30mAp-p
Temperature Coefficient : ≤0.3%±20mV / ≤0.3%±10mA
Transient response time : ≤1.0ms
TPS-1305R is a programmable DC power supply with a fine-tuning voltage of 1mV and a current of 10mA resolution, and can store 5 sets of parameters, which can be quickly switched in the output. In addition to the output switch, there is also a voltage and current overload protection function to avoid abnormal voltage or current output, which can disconnect the power supply to protect the instrument and equipment.
Measurement Specification
Voltage Output : 0 to 30V
Current Output : 0~5A ±(≤0.1% + 10mA)
Display Accuracy : ≤0.1%±20mV / ≤0.1%±10mA
Load Regulation : ≤30mV / ≤30mA
Ripple & Noise : ≤30mVp-p / ≤30mAp-p
Temperature Coefficient : ≤0.3%±20mV / ≤0.3%±10mA
Transient response time : ≤1.0ms
