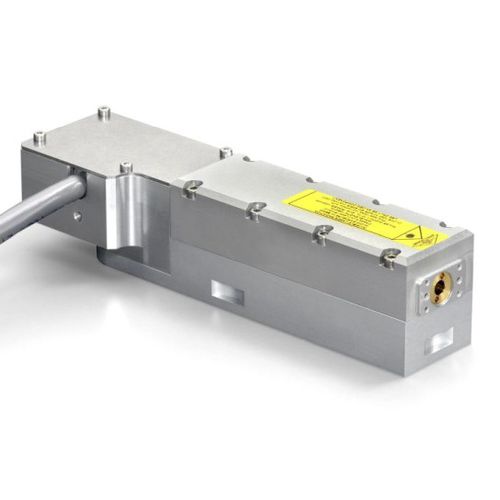

Q-switched laser head STP-10E-1x0triggerednanosecondsolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, triggered, nanosecond
- Technology
- solid-state
- Spectrum
- infrared
- Applications
- instrumentation, for Raman spectroscopy, for medical applications, LIDAR
- Other characteristics
- single longitudinal mode, air-cooled, Nd:YAG, diode-pumped
- Power
0.06 W, 1,000 W
- Wavelength
1,064 nm
Description
The STP-10E is a triggered Microchip Series laser. It produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. Pulses can be controlled individually up to 2 kHz. The laser is single longitudinal mode with a linewidth of 0.2pm due to the longer pulse duration of 8 ns.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
KEY FEATURES
> Family: MicroChip
> Energy/Pulse: 14 µJ
> Repetition rate: 4.5 kHz
> Triggered: yes
> Single frequency: yes
> Linewidth: 0.2 pm
> Pulse duration: 8000 ps
> Package: SNxII
