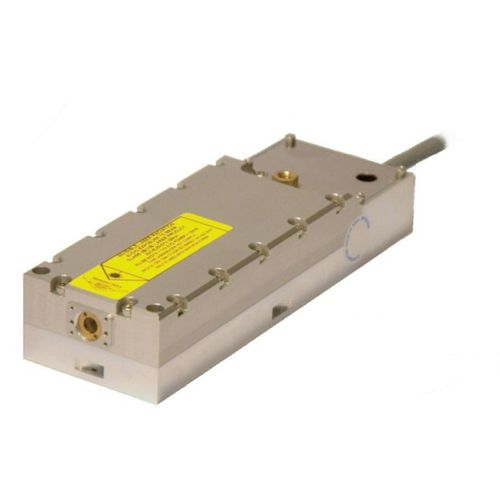

Q-switched laser head STV-01E-1xxtriggeredsolid-stateUV
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, triggered
- Technology
- solid-state
- Spectrum
- UV
- Applications
- instrumentation, for Raman spectroscopy, for medical applications, LIDAR
- Other characteristics
- sealed, single longitudinal mode, air-cooled, Nd:YAG
- Power
0.004 W, 2,500 W
- Wavelength
355 nm
Description
The STV-01E laser is a triggered Microchip Series optimized for pulse duration, shorter than 400 ps. This laser produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A third harmonic generation stage produces the 355 nm radiation with a very good beam quality and lifetime. Pulses can be controlled individually up to 4 kHz. The laser is single longitudinal mode.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
KEY FEATURES
> Family: MicroChip
> Energy/Pulse: 1 µJ
> Repetition rate: 4 kHz
> Triggered: yes
> Single frequency: yes
> Linewidth: 0.5 pm
> Pulse duration: 400 ps
> Package: SNxII
