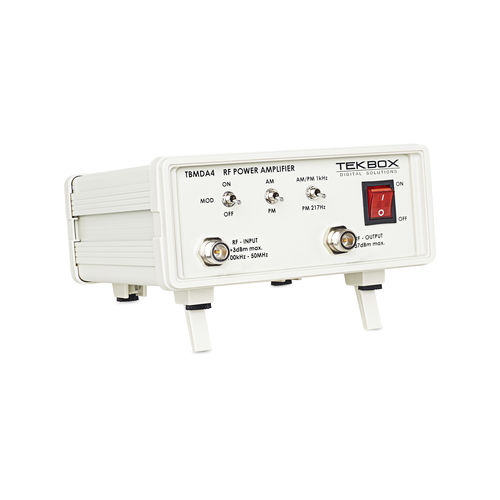

Signal amplifier TBMDA4

powerwide-band

The TBMDA4B modulated wideband power amplifier is designed in order to create an inexpensive signal source for immunity testing of electronic building blocks and products. It is designed to be driven by the tracking generator output of spectrum analyzers. With an input power range of -20 dBm…-10 dBm, it can boost the output power of a tracking generator up to 5W. With a frequency range from 100 kHz to 75 MHz, it is an ideal complement to the TBMDA3, which covers 10 MHz to 1 GHz. The TBMDA4B is ideal to drive Tekbox near field probes in order to find the sensitive spot of an electronic circuit or to create electric fields up to 550V/m when driving the Tekbox TEM Cell TBTC0, 300V/m when driving the TBTC1, 150V/m when driving the TBTC2 or 100V/m when driving the TBTC3. Test signals for immunity testing can be CW, AM or PM modulated. Consequently, the TBMDA4B provides built in modulation capability to generate 1 kHz AM or PM signals. In PM mode, the TBMDA4B can also generate a 217 Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise. FEATURES CW amplifier (modulation off) 1 kHz, 80% AM modulation 1 kHz, 50% duty cycle pulse modulation 217 Hz, 12.5% duty cycle pulse modulation APPLICATION general purpose power amplifier signal source for immunity testing, driving near field probes signal source for immunity testing, driving TEM Cells
