Electrical network analyzer MCA3000 series
powerfor integrationmulti-parameter

electrical network analyzer
electrical network analyzer
electrical network analyzer
electrical network analyzer
Add to favorites
Compare this product


Measured entity
for electrical networks
Measured value
for integration
Other characteristics
multi-parameter, microwave

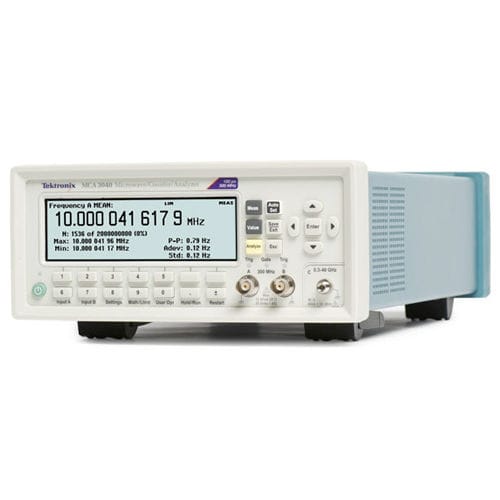

Offering up to 40 GHz measurements, the Tektronix MCA3000 Microwave Analyzer Series packs many different functions into one feature-rich instrument. The integrated power meter and two additional timer/counter channels offer you even more test functionality than other microwave analyzers on the market. With unprecedented resolution, you can capture very small frequency and time changes. And with the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal. Features 12 digit/s frequency resolution 100 ps time resolution Multi-parameter display Trend Plot mode Histogram mode Statistics mode Integrated power meter Optional TimeView™ software USB and GPIB ports PC Connectivity Benefits See small changes in frequency with industry-leading frequency resolution. Accurately capture signal details with industry-leading single-shot time resolution. Read critical auxiliary measurement values displayed with your main frequency, time, or phase measurement to quickly asses your device's performance. Plot measurement trends and graphically identify the extent of drift and intermittent events. Discover stability or noise problems by viewing results as a histogram. View multiple statistical values such as average, min, max, standard and Allan deviation to see how your signal is changing. Measure frequency and power with a single connection, enabling you to analyze variations in signal power with 0.01 dBm resolution @ 100 ms acquisition time.


No catalogs are available for this product.
