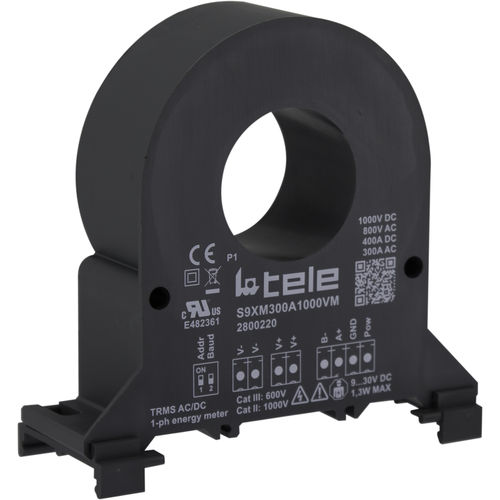

Single-phase electric energy meter S9XM300A1000VM
DIN railwall-mountedpanel-mount

single-phase electric energy meter
single-phase electric energy meter
single-phase electric energy meter
single-phase electric energy meter
single-phase electric energy meter
single-phase electric energy meter
Add to favorites
Compare this product

Characteristics

Type
single-phase
Assembly
DIN rail, wall-mounted, panel-mount, plug-in
Other characteristics
RS-485, 50 Hz, digital, Modbus, 60 Hz, multi-function, with built-in communication, smart, with data logger
Current

400 A

Max.: 400 A

Min.: 0 A

Voltage

1,000 V

Max.: 1,000 V

Min.: 0 V

Description

The TELE S9XM300A1000VM is a single-phase, bi-directional energy meter with an integrated current transformer that captures both AC and DC measurements. The standard Modbus RTU output allows the user enhanced flexibility when retrofitting an existing system. Any control systems or PLC systems with Modbus RTU inputs can be easily connected. 1-phase AC / DC power converter with integrated Modbus RTU output Measurements: Irms, Vrms, Watts, Var, Va, Vpk, Ipk, Frequency, Cosφ, Energy bidirectional, THD, as well as MIN and MAX values TRMS measurement: up to 300A AC / 800V AC or 400 A DC / 1000V DC Measuring frequency: 1 ... 400 Hz or DC, bipolar Outputs: Modbus RTU via RS485 Mounting: DIN rail horizontal or vertical, or via mounting holes Certificates: CE, UL Recognized Configuration: Via free software and RS485-USB converter S-USB485 (Article number 498513) The areas of application are industry-independent and diverse: mechanical engineering, plant construction, data centers, building technology, energy management, pump control, energy generation, process technology and many more. No additional transducers are necessary, the S9XM300A1000VM is current/voltage sensor and energy meter in one!
