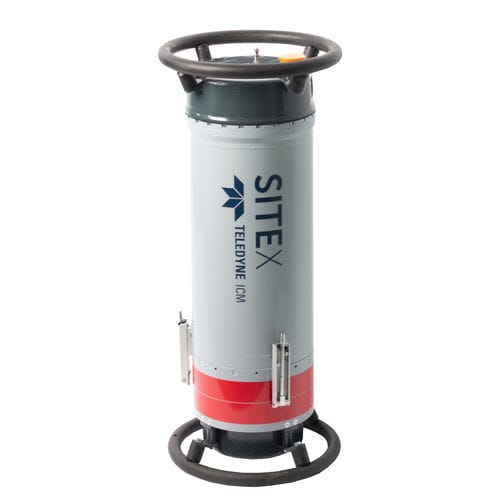

Panoramic X-ray generator C3005

portable

Tube current range - mA - 1 to 5 Tube current at full output - mA - 5.0 Max. power at the anode - W - N.A Constant power mode - - - No Working cycle at 30°C (*) - % - 100 Steel penetration (**) - mm - 60 Weight (excluding guard rings) - Kg - 32 Overall dimensions - mm - Ø 346 x 831 Leakage dose at 1 m at full output - mSv/h - <10 Optical focal spot (IEC336) - mm - Ø 5 x 0.8 Max. useful angle - ° - 360 x (2X20) Inherent filtration - mm Be - 2.5 (Al) + 0.4 (Ni) Waterproof level - - - IP65 Operating temperature - °C - -25 to +70 Storage temperature - °C - -40 to +80 Built-in carrousel featuring 5 outputs - - - No Guard rings - - - 2 (*) Open air - 5m/sec airstream - - - - (**) 700 mm FFD, 20 min, AA400, D=1.5 - - - -
