AC/DC power supply
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Input voltage
Min.: 85 V
Max.: 265 V
- Output voltage
42.5 V
- Current
5.6 A
- Power
30 W
Description

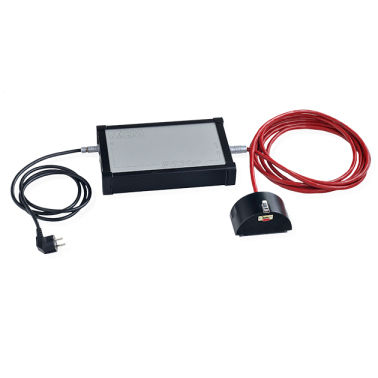

When a power outlet is available near the CP120B or CP160B generators, a specific mains power supply can be used to directly power the generators without having to use the battery packs. This equipment consists of an adaptor in the shape of a battery pack that enables both an easy and solid connection to the CP generator.
A green LED on the side of the main power cable indicates that the PS36 is switched on and that a supply voltage is available.
PRODUCT INFORMATIONS
Input voltage : 85 - 265 Vac
Input frequency : 50 - 60 Hz
Consumption current : 2.5 max (internal 6A fuse) A
Output voltage : 42.5 Vdc
Output current : 5.6 A
Nominal output power : 30 W
Operating temperature : -20 to +60 °C
Storage temperature : -40 to +85 °C
