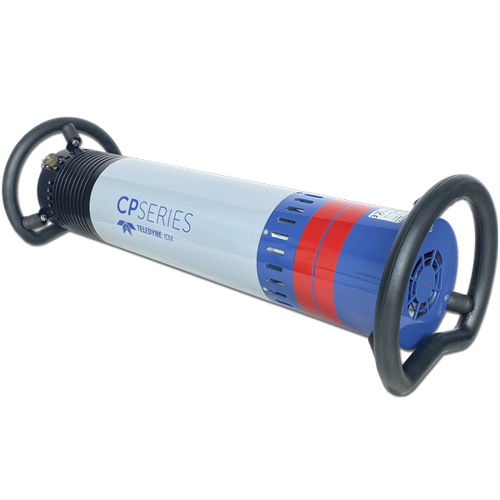

Portable X-ray generator CP300C

panoramicconstant potential

The CP300C is the first panoramic x-ray generator of the CPSeries product range. Equipped with a metal-ceramic tube, the CP300C is a light (less than 30kg) and powerful generator (300 kV), able to penetrate up to 52mm of steel in 10 minutes, making it the best power-to-weight ratio in the world. The efficiency of the CP300C is also maximum thanks to its real 100% duty cycle that allows longer exposure time (> one hour). A full range of accessories is available (holding bars, tripod…) and even a 60°x40° lead diaphragm to convert the CP300C into a directional unit. Like the rest of the CPSeries product range, the CP300C operates with the plug-and-play POWERBOX control unit. Tube current range - mA - 0.5 to 10 Tube current at full output - mA - 2.5 Max. power at the anode - W - 750 Constant power mode - - - Yes Working cycle at 30°C - % - 100 Steel penetration - mm / in - 52 / 2.05 Weight - Kg / lbs - 29.4 / 64.81 Overall dimensions - mm/in - Ø 180 x 837 / 7.1 x 33 Leakage dose at 1 m at full output - mSv/h - < 5.0 Optical focal spot (EN12543) - mm - 0.5 x 5.5 / 0.2 x 0.21 Max. useful angle - ° - 360 x 40 Inherent filtration - mm - 0.4 Ni / 0.02 + 3.5 / 0.14 Al Waterproof level - - - IP65 Operating temperature - °C - -30 to +60 Storage temperature - °C - -40 to +70 Guard rings - - - 2
