Data connector 100023337

RFBNCjack

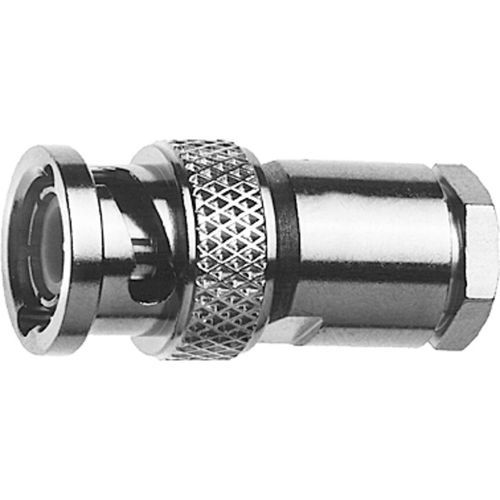

BNC Straight Plug solder/clamp G1 (RG-58C/U) pressure sleeve BNC Plg str sd/cl G1 Z50 50 Ω G1 (RG-58C/U); 1.0/2.95 AF RG-58C/U 7806A 9907 CNT-195 HPF 195 KX 15 LMR-195 WCX195 1.0/2.95 AF RG-141A/U RG-142B/U solder/clamp; pressure sleeve A01 UG-88/U 1.0/2.95 AF RG-141A/U RG-142B/U The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications. Mating face sealing for BNC connectors between plug and jack (mated) according to IP 54. The classifications are general statements for the relevant series. Individual connectors may deviate from the values shown. If in doubt, please consult our engineers.
