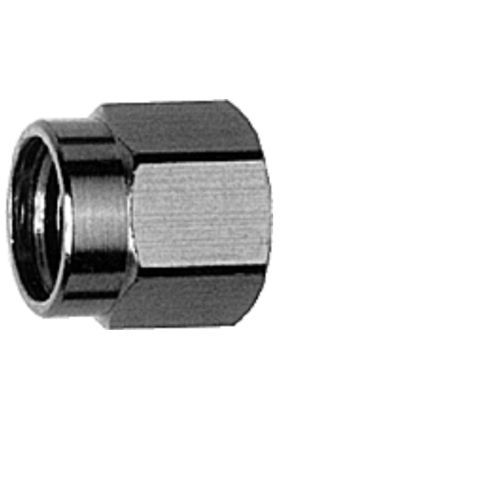

RF connector 100024649

jackSMAstraight

SMA Straight Plug G10 (UT-141) without inner conductor IP 68 Article name - SMA Plg str sd G10 custm Cable group; cable - G10 (UT-141) EZ 141 1673A RG-402/U SUCOFORM 141 UT-141 Flexiform 402 Remarks - without inner conductor IP 68 Return Loss - typ.: 4 GHz: -45 dB; 6 GHz: -41 dB; 10 GHz: -27 dB; 18 GHz: -23 dB Finish - Gold Assembly - C28 The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment. Mating face sealing for SMA connectors between plug and jack (mated) according to IP 68. This classification is a general statement for the relevant series. Individual connectors may deviate from the values shown. If in doubt, please consult our engineers. Durability (Matings) - ≥ 500 Recommended coupling torque - 79 - 113 Ncm Material: spring contacts - CuBe2 Material: crimp ferrule - Cu Material: serrated lock washer - CuSn6 Material: insulators - PTFE Material: gaskets - MVQ Finish: Inner conductor - Cu1Ni2Au1.27 Finish outer conductor: Gold (standard; last digit ...1) - NiPAu Finish outer conductor: MIL gold (last digit ...2) - Cu1Ni2Au1.27
