RF connector 100024915

SSMBstraightcrimp

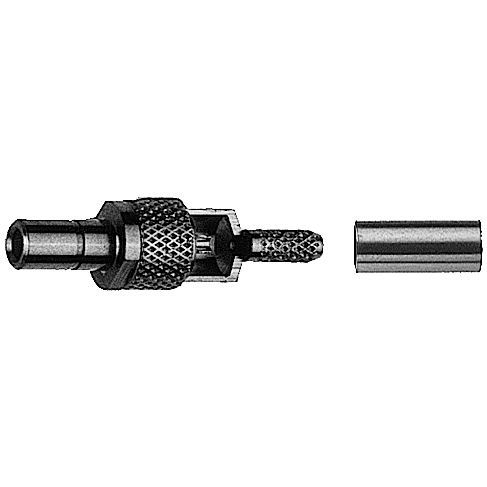

SSMB Straight Plug Crimp G3 (RG-178B/U) Article name - SSMB Plg str sd/cr G3 Au Cable group; cable - G3 (RG-178B/U) KX 21A RG-178B/U RG-196A/U Finish - Gold Assembly - C2413 The SSMB series of connectors utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. The impedance is controlled Connector designs are available for flexible cables like RG-316 and RG-178. Styles are available for mounting to printed circuit boards using thru-hole soldered assembly. Solder and crimp techniques are used to terminate this series to the cables. Because of their small size, SSMB connectors have applications in small instruments and communication equipment. Durability (mating cycles): standard type - ≥ 100 Durability (mating cycles): MIL type - ≥ 500 Insertion force - ≤ 27 N Disengagement - min. 4,5 N Material: spring contacts - CuBe2 Material: solid contact parts - CuZn39Pb3 Material: crimp ferrule - Cu Material: serrated lock washer - CuSn6 Material: insulators - PTFE Finish: Inner conductor - Cu1Ni2Au1.27 Finish outer conductor: Gold (standard; last digit ...1) - Cu1Ni2Au0.8 Finish outer conductor: MIL gold (last digit ...2) - Cu1Ni2Au1.27 Finish outer conductor: Type for printed circuits (last digit ...7) - SnPb8 Finish outer conductor: Telealloy (white bronze) (last digit ...8) - CuSnZn3 Finish outer conductor: Nickel (last digit ...9) - Cu2Ni5 Finish other metal parts: Gold (standard; last digit ...1) - Cu2Ni5Au0.2 Finish other metal parts: MIL gold (last digit ...2) - Cu1Ni2Au0.8 Finish other metal parts: Nickel (last digit ...9) - Cu2Ni5 Climatic category acc. to IEC 60068 - 1 - 55/155/21
