Connection module 100007547

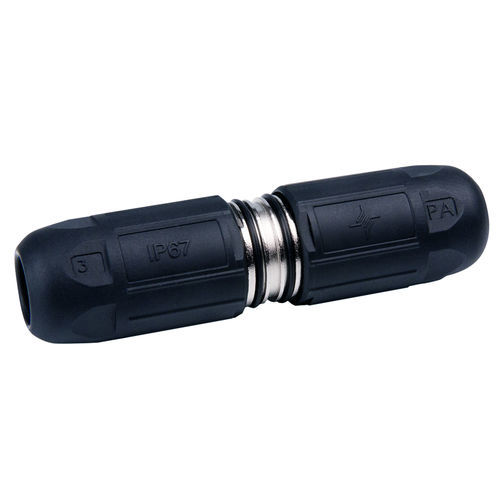

Connection module VM-Pro 8-8 Class FA IP67 CU-CM VM-Pro 8-8 22-27 CFA VM-Pro 8-8 Class FA IP67 AWG27-22 black The connection module VM-Pro 8-8 Class FA IP67 offers transmission properties up to Class FA acc. to ISO/IEC 11801 and is suitable for installation and patch cables with 8 wires. Shielded and unshielded cables with solid and stranded conductors of AWG27-22 type and outer diameter of 5.5 - 9.0 mm can be connected with the VM-Pro 8-8 Class FA IP67. Due to its compact shape the connection module is suitable for use in confined spaces. Assembly of the VM-Pro 8-8 Class FA IP67 connection module requires no special tools and is completed in a few steps. The mechanical stability, the insulated structure and the protection against external influences enables versatile use of the VM-Pro 8-8 Class FA (1000 MHz) IP67 for laying and repairing cables in building, residential and industrial building cabling. The IP67 connection module is shielded, insulated by the plastic screw glands, safe from manipulation and enables reliable strain relief. Cable diameter: 5.5 - 9.0 mm electrical scoop-proof Class FA (1000 MHz) real-time re-embedded suitable for 100 / 250 / 500 / 1000 MHz installation and patch cords electrical scoop-proof connection via IDC termination isolated construction connection of 4-pair shielded/unshielded installation and patch cords from AWG 27-22 reconnectable up to 4 times EMC tested acc. to DIN EN 61000-6-1 and DIN EN 61000-6-2 Temperature range: -40° C to 70° C reconnectable up to 4 times
