Fiber optics patch cord 100010911

OM4OM3MPO

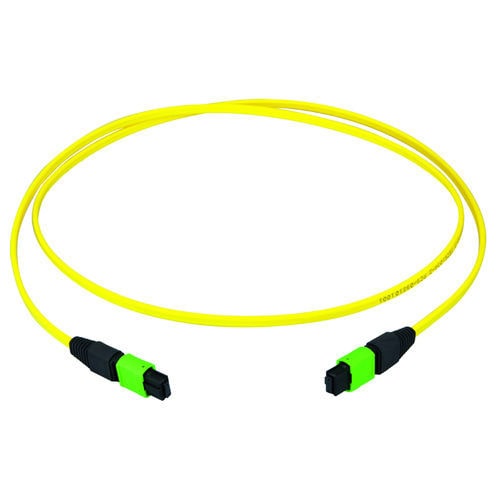

MPO APC female patch cord, yellow, E9/125 OS2, 1 m FO-PC mxA 1m MPO12/Af OS2 MPO12/Af E9/125 OS2 MPO APC female yellow green 1 m The pre-term MPO/MTP® cabling system is the future-proof and economical solution for fiber optic networks from 10 Mbps to 100 Gbps according to EN 50173, EN50174, ISO/IEC 24764:2010 and ANSI/TIA-568-C.0. Telegärtner offers components according to connectivity method A as a standard, with identical MPO modules on either side of a link and 1:1 trunk cables. Components for connectivity methods B and C are also available. Customer specific lengths avaliable using the TICNET configurator at www.telegaertner.com/ticnet Low insertion loss components on request Fiber structure: Primary coating - Acrylate, Ø 250 ±15 µm Cable structure: Cable jacket - Polymer, yellow (9/125), orange (50/125 OM2; 62,5/125), aqua (50/125 OM3), violet (50/125 OM4) Cable structure: Dimensions - 3.0 mm Cable structure: Strength members - Aramid (Kevlar) Bending radius - OS2: 15 mm; OM3/OM4: 25 mm Mating Face - female (male auf Anfrage) Connectivity method A; type B and C also available
