Fixed electrical plug 100007387

IP68

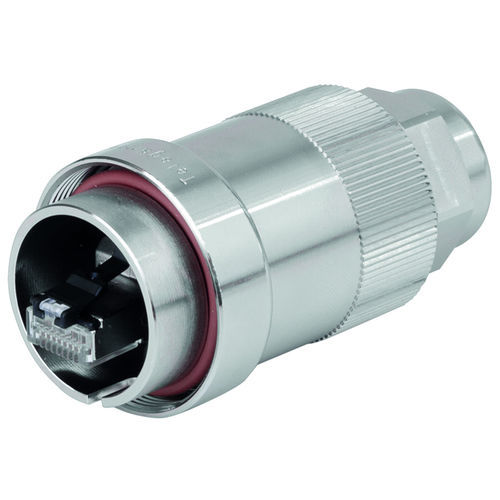

TOC Steckerset IP68 MFP8 T568B Cat.6A; brass type CU-CN TOC plgset MFP8 T568B C6A IP68 TOC plug set IP68 MFP8 T568B Cat.6A; AWG22-27 brass, nickel-plated TOC stands for Telecommunications Outdoor Connectors and offers cabling professionals the reliability and flexibility they need for toughest applications. The handy, easy to install TOC connectors are used for data- and telecommunications in mobile radio, process-, utility- and traffic automation, or security applications but also in the harsh environment of machine and plant engineering. The TOC series is available in nickel-plated brass for RJ45 Cat.6A, FO LC Duplex and MPO/MTP® connectors. Compliance with the specifications of protection class IP68 and due to its excellent material properties, the TOC series can be installed even in harsh conditions within a temperature range from -40°C to 85°C. To lock, relief of strain and seal the connection, one turning movement is necessary and no further procedures are required. Customers benefit: a fast, error free and easy installation, high transmission reliability and resilience and more flexibility in the network design. The TOC series RJ45 coming with the newly available field assembly RJ45 plug MFP8 Cat.6A and RJ45 keystone AMJ-S Module Cat.6A is available as a set. They can be attached to solid and stranded conductor cables with cable outer diameter max. 9.5 mm on site without the need for any special tools. For line extensions, the TOC Coupler IP68 is your first choice. It can be easily integrated with no negative effects on performance of the connection. suitable for 10 Gigabit Ethernet acc. to IEEE 802.3an suitable for PoE+ acc. to IEEE 802.3at 360° shielding
