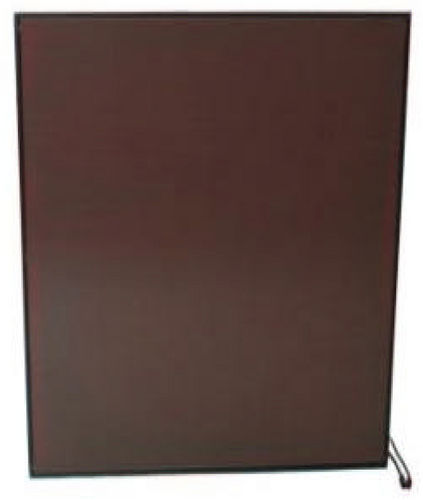

Amorphous silicon photovoltaic module max. 100 W | TM95/100TF seriesthin-film
Add to favorites
Compare this product
Characteristics
- Material
- amorphous silicon
- Other characteristics
- thin-film
Description
Typical Electrical Characteristics THIN FILM SERIES (Single)
Model Number TM95TF-A TM100TF-A
Rated Maximum Power (Pmax) 95W 100W
Power Tolerance -0/+5W -0 / +5W
Maximum Power Voltage (Vmp) 103V 103V
Maximum Power Current (Imp) 0.94A 1.00A
Open Circuit Voltage (Voc) 137V 138V
Short Circuit Current (Isc) 1.20A 1.24A
Maximum System Voltage (VDC) 1000V
Module Efficiency >7% >7%
Nominal Operating Cell Temperature (NOCT) 45°C +/- 3°C
