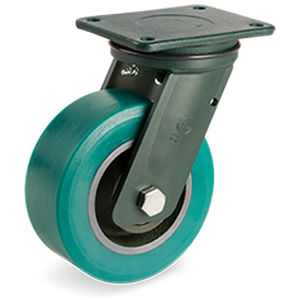

Swivel caster 62GH series

base plateindustrialfor trolleys

Product which combines an excellent rolling resistance with the ability to damp down vibrations and overcoming obstacles and very good performance and durability in case of heavy usages and mechanical handling at speeds up to 16 km/h. Examples of Uses: mechanically handled trolleys in automotive industries, logistics, carpentries. TECHNICAL FEATURES WHEEL TREAD: TR-ROLL polyurethane, hardness 75 Shore A CENTRE: made of cast iron BRACKETS: EE MHD, EE HD, EE EHD, ENVIRONMENTS OF USE Designed for industrial environments, even in in the presence of alcohols, glycols, hydrocarbons.Not recommended in areas with organic acids and mineral acids, base solutions and saturated steam. In case of use in aggressive environments, it is possible to use a protective lacker. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
