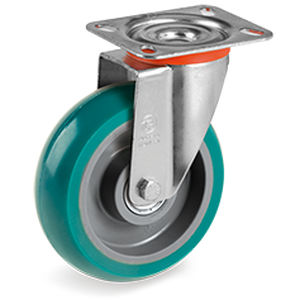

Swivel caster 62NY series

rodfor trolleyshigh load capacity

Excellent for trolleys and equipment handling medium-heavy duty loads, also suitable for continous handling, even in presence of humidity and aggressive chemicals. Suitable for towing applications and manual/mechanical handling up to 6 km/h. The ergonomic round profile variant enables to reduce the start-up effort when pushing/pulling a trolley from a still position. USAGE CONDITIONS Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
