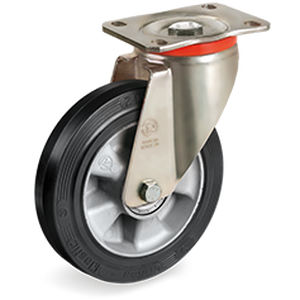

Swivel caster series 72AL
base platelow-noiseindustrial

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
low-noise, industrial, for trolleys, handling, for pallet trucks, steel, aluminum, elastic rubber, metal, resin
Load capacity

Min.: 184 kg
(406 lb)

Max.: 510 kg
(1,124 lb)

Wheel diameter

Min.: 100 mm
(3.937 in)

Max.: 250 mm
(9.843 in)

Description

The excellent elasticity guarantees an easy overcoming of obstacles, vibration damping and noise reduction during use. Combined with appropriate brackets, they are also suitable for mechanical handling up to 6 km/h. Examples of recommended applications: trolleys for indoor and outdoor industrialhandling, manual pallet trucks, heavy waste collection bins. TECHNICAL FEATURES WHEEL TREAD: Sigma Elastic rubber tread; hardness 70 Shore A; good resistance to wear and to tearing CENTRE: die-cast aluminium BRACKETS: NL, M, P, EE MHD, EEG MHD, EEG HD, ENVIRONMENTS OF USE Industrial environments, even in presence of humidity. Not suitable in presence of strong acids and solvents. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.

Catalogs

Catalog 2023
Catalog 2023
448 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
