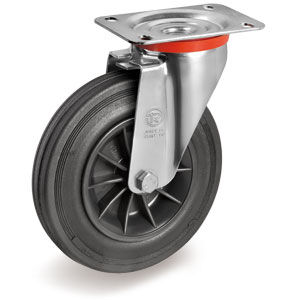

Swivel caster 52 series
base platefor trolleyslight-duty

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
industrial, for trolleys, handling, light-duty, rubber, polypropylene, metal, galvanized steel, resin
Wheel diameter

Max.: 250 mm (9.843 in)

Min.: 80 mm (3.15 in)

Load capacity

Max.: 306 kg (675 lb)

Min.: 66 kg (146 lb)

Description

Suitable for trolleys with light-duty loads, also in the presence of obstacles and for indoor-outdoor use. Examples of recommended applications: luggage trolleys, tool trolleys, small mobile scaffoldings, waste bin containers. TECHNICAL FEATURES WHEEL TREAD: standard rubber tread; hardness 80 Shore A. CENTRE: polypropylene BRACKETS: NL, ENVIRONMENTS OF USE Suitable for industrial and institutional environments, also in presence of humidity and weak acids. Not suitable in presence of strong acids, bases and solvents. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
