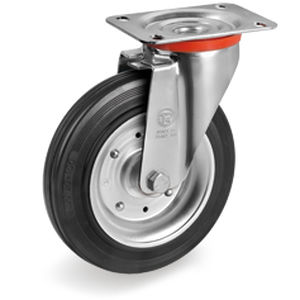

Swivel caster series 53
base plateindustrialfor trolleys

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
industrial, for trolleys, handling, light-duty, rubber, pressed steel, metal, resin
Load capacity

Max.: 398 kg
(877 lb)

Min.: 66 kg
(146 lb)

Wheel diameter

Max.: 280 mm
(11.024 in)

Min.: 80 mm
(3.15 in)

Description

Suitable for trolleys with light-duty loads, also in the presence of obstacles and for indoor-outdoor use. Examples of recommended applications: tool trolleys, trolleys for industrial indoor handling, small mobile scaffoldings, waste bin containers. TECHNICAL FEATURES WHEEL TREAD: standard rubber tread; hardness 80 Shore A. CENTRE: made of two riveted galvanizec pressed steel discs BRACKETS: NL, ENVIRONMENTS OF USE Suitable for industrial environments, also in presence of humidity. Not suitable in presence of aggressive chemical agents. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They easily overcome obstacles, do not damage fragile floors, but they may mark the floor. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
