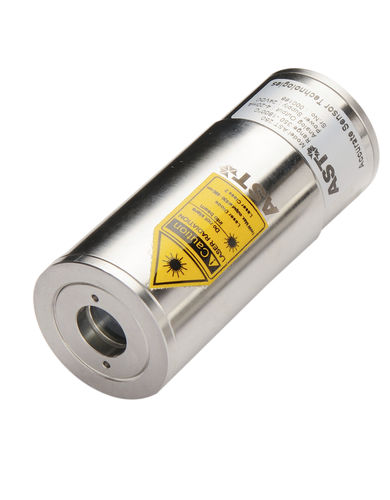

IR pyrometer AST AL514
digitalfixedsurface-mount

IR pyrometer
IR pyrometer
Add to favorites
Compare this product

Characteristics

Technology
IR
Display
digital
Configuration
fixed, surface-mount
Other characteristics
USB, IP65, RS485, 4-20 mA, with laser pointer, with remote display, non-contact
Applications
industrial, for glass surfaces
Temperature

Min.: 300 °C (572 °F)

Max.: 1,400 °C (2,552 °F)

Description

Product Feature: Digital pyrometer with analog output & Digital Interface, USB output & laser Targeting Temperature Range: 300 - 1400ºC 400 - 2500ºC L514IR Pyromter model provides the advantage of non contact temperature measurement of Glass and Quartz surfaces. Glass is transparent in the visible and near wavelengths of Infrared region. In spectral range of 5.14 μm emissions are very high with almost zero reflections which is very useful as temperature of the Glass surface can be measured reliably and accurately. AL514IR thermometer works in spectral range of 5.14 μm thus, highly useful for temperature measurement in Float Glass industry. Designed for easy integration into standard 4 wire system,this format combines the high accuracy of digital signal processing with the simple connection. AL514IR Pyrometer is used for target temperature ranging from 300°C to 2500°C. The electronic assembly is protected by IP65 rugged stainless steel housing.
