Infrared thermometer Edge Core

digital°Canalog output

Product overview
The Edge Core is a non-contact infrared pyrometer designed to measure temperatures from −50 °C to +900 °C with precision. Its extremely compact sensor can operate in ambient temperatures up to 180 °C without external cooling. Standard M12 connections and an industrial controller in an aluminum die-cast enclosure enable machine- and process-level installation. Typical uses include machine building, machine design, production processes and quality assurance.

Integration and interfaces
Edge Core is developed for OEM integration and offers multiple outputs to fit industrial environments. Analog and digital outputs, as well as switching and alarm signals, enable direct integration into control systems, data acquisition modules and automation equipment.

Design and construction

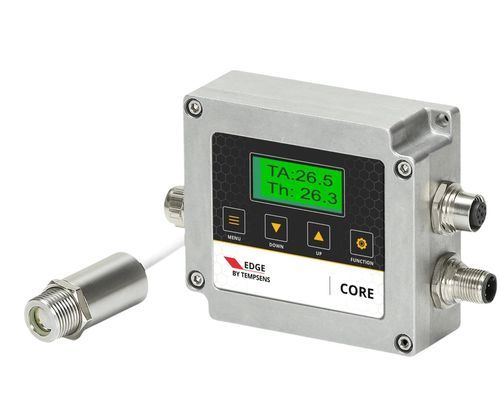

The system separates local measurement and evaluation: a compact infrared sensor and an industrial-grade controller housed in an aluminum die-cast enclosure with IP65 protection. The sensor's small size allows space-saving installation close to the measurement point while withstanding high ambient temperatures (up to 180 °C) without cooling.

Technical specifications

• Measurement type: Non-contact infrared pyrometer
• Temperature measurement range: −50 °C to +900 °C
• Sensors: Extremely compact sensor suitable for high ambient temperatures (up to 180 °C) without cooling
• Connections: Standard M12 connections
• Outputs / Interfaces: Analog and digital outputs; switching and alarm signals
• Controller: Industrial-grade controller in aluminum die-cast enclosure
• Protection rating: IP65
• Integration: Designed for OEM integration; suitable for digital processing of measured values
• Typical applications: Machine building, machine design, production processes, quality assurance
