Infrared temperature sensor Edge Micro

thermopilewith housingembedded

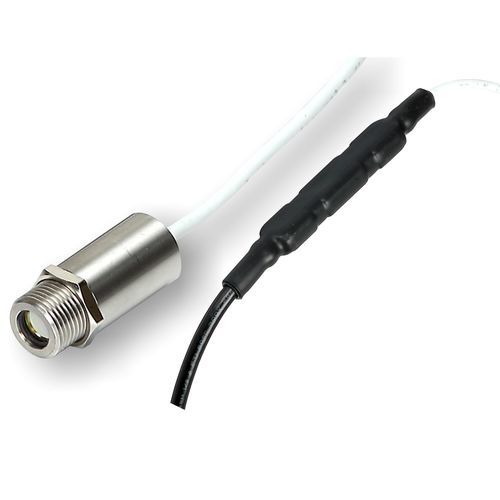

Overview The Edge Micro is a compact, high-precision infrared pyrometer for non-contact temperature measurement between -40 and 1100 °C. Its miniature sensing head separates the measurement point from the signal processing by housing the controller inside the connection cable, improving measurement stability under harsh industrial conditions. The sensor head supports continuous operation up to 120 °C and the assembly features a robust housing with a very small mechanical footprint.

Features

• High-precision non-contact infrared temperature measurement
• Wide temperature range: -40 to 1100 °C
• Miniature sensing head with controller embedded in the connection cable
• Continuous sensing head operation up to 120 °C
• Robust housing with very small mechanical footprint
• Extensive parameterization and setup options
• Compatibility with multiple electrical connector types

Applications

• Machine construction and industrial automation
• Manufacturing process temperature monitoring
• Quality assurance and process control
• OEM integration into machines and production lines

Advantages

• Separation of sensing point and signal processing for increased measurement stability and accuracy
• Controller-in-cable design reduces space required at the sensing point
• Optimized for series production and OEM applications with a competitive price/performance ratio

Technical specifications

• Model: Edge Micro
• Measurement range: -40 to 1100 °C
• Sensing head continuous operating temperature: up to 120 °C
• Non-contact infrared pyrometer, high precision
• Embedded controller within the connection cable
• Robust housing with small mechanical footprint
• High parameterization and setup capability
• Support for multiple electrical connector options
• Designed for OEM integration and series production
