Vegetable slicing machine TSC 100

fruitpotatocarrot

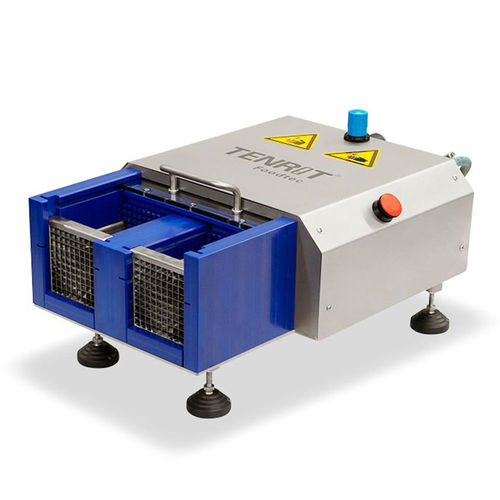

Peumatic stick cutter for carrots, potatoes, cucumber and other vegetables and fruits The TENRIT TSC 100 pneumatic stick cutter is used to produce vegetable sticks in various cross-sections. It can process various vegetables and fruits. The machine has two chambers, with a dimension of 100 x 100 x 100 mm per chamber. Product is placed in the chambers and the lid is closed. Two pneumatic cylinders then push the product with punches through two blade inserts. When the cutting chambers are opened again, the cylinders retract and the chambers can be refilled. The punches and blade inserts are easily removable so different sizes can be used. Possible dimensions of the sticks: 8 x 8 mm, 10 x 10 mm, 12 x 12 mm, 20 x 20 mm, 25 x 25 mm (other sizes on request) Advantages • High capacity thanks to two chambers • Quick replacement of blade sets and counter punches • Stepless pressure adjustment for hard or soft vegetables • Operated only by pressurized air Performance Capacity: max. 3,600 pieces/h Product length: max. 100 mm Product diameter: max. 95 mm
