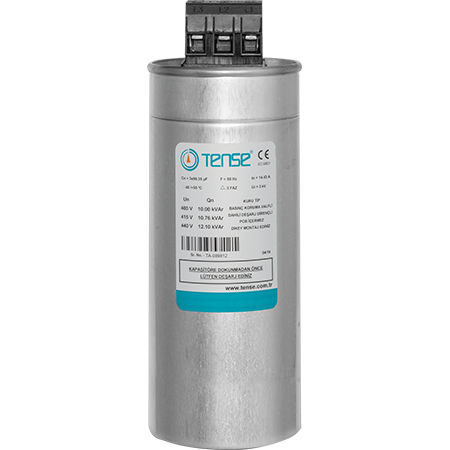

Polypropylene film capacitor TTKA series
aluminumcylindricalpower factor correction

polypropylene film capacitor
polypropylene film capacitor
Add to favorites
Compare this product


Characteristics

Type
polypropylene film, aluminum
Configuration
cylindrical
Technical characteristics
power factor correction, three-phase
Voltage

690 V

Description

LV Power Capacitors are designed for power factor correction in low voltage systems. Capacitors have a cylindrical aluminum casing. The explosion of the capacitors is prevented by the overpressure sensitive circuit breaker system. • - Power : 12,5 kVAr (Three-Phase) • - Dimensions : 90x243mm. • - Standards : IEC 60831-1/2 • - Rated Voltage : 690V AC • - Over Voltage : Un + 10%, 8 hours in every 24 hours • - Over Current : 1,5 x In • - Casing : Cylindrical aluminum can. • - Life Expectancy in Normal Condition : >130.000 hours (ambient temperature up to + 55°C) • - Çevre Sıcaklığı : - 40°C - +55°C • - Cooling : Natural air cooled. Casing temperature maximum 60°C permitted on top of the can. • - Dielectric System : Metallised Polypropylene Film, Self Healing property. • - Safety Features : Over pressure sensitive 3 phase disconnector. • - Mounting Position : Vertical.

Catalogs

No catalogs are available for this product.

See all of Tense Electronic‘s catalogs
