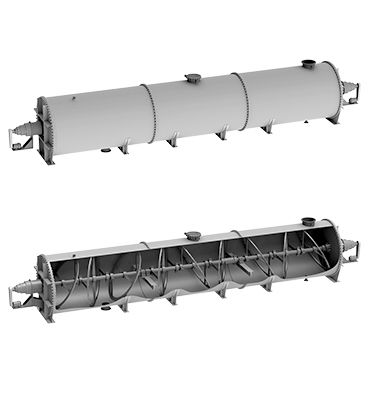

Paddle mixer TC-MU-49

horizontalcontinuous-flowfor liquids

Product overview
Seed magma feeding mixer TC-MU-49 is designed for intake of boiled seed magma and serves as an integral buffer vessel in the A (B and C) products massecuite boiling scheme. It operates within the seed magma dosing circuit together with vacuum units to ensure continuous, metered feed into the massecuite process.

Structural features

• Built-up construction allows a broader choice of installation locations compared with other integral mixers of the same volume.
• Upper section protected against corrosion; full stainless-steel construction available on request.
• Optimised massecuite mixing to maintain homogeneity.
• Design prevents formation of stagnation zones.

Efficiency

• Reduces boiling time of A (B and C) products massecuite.
• Decreases water losses during massecuite centrifuging.
• Minimises vapour losses at the sugar end.
• Reduces sucrose losses.
• Improves massecuite crystal structure.

Reliability

• Low maintenance requirements and straightforward access for servicing.

Specifications
Name: TC-MU-49
Usable volume, m³: 49
Overall dimensions, mm:
Length: 15,200
Width: 2,510
Height: 2,760
Motor power, kW: 3.5 / 5.5
Mass, kg: 23,000

Technical specifications

• Name: TC-MU-49
• Usable volume: 49 m³
• Overall dimensions (mm): Length 15,200; Width 2,510; Height 2,760
• Motor power: 3.5 / 5.5 kW
• Mass: 23,000 kg
