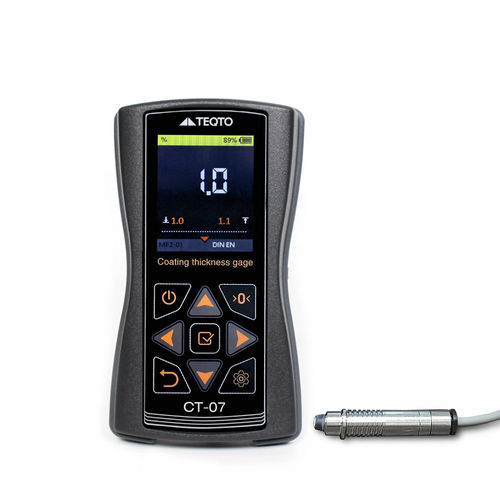

Coating thickness gauge CT-07

steelfor carbon steelcorrosion

The CT-07 is a handheld device designed to measure the thickness of various coatings on ferromagnetic bases such as steel and pig iron. Its primary function is non-destructive testing of insulating coatings, ensuring accurate measurements ranging from 2 to 30,000 µm. The gauge is capable of measuring coating thickness on magnetic bases and even rust thickness on steel surfaces, including inner tube walls. It also accurately measures the thickness of electrocoatings such as zinc, chrome, cadmium, and silver on magnetic bases. - Application areas: - Oil and gas industry - Chemical and food industry - Shipbuilding and ship repair - Machine building and transport - Thermal and nuclear power industry - Pipe mills - Public utilities - Operational advantages: - Wide measurement range from 2 to 30,000 µm. - Capable of measuring rust thickness on steel surfaces. - Measures the thickness of various electrocoatings on magnetic bases. - Offers both local and continuous measuring modes. - Displays minimum and maximum measured values, arithmetic mean value, and mean square deviation. - Exploitation advantages: - Non-volatile memory for data storage. - PC communication for data transfer. - Automatic switch-off function when work is paused. - Accommodates up to 7 types of probes for different measuring ranges. - Spring-loaded contact of probes and V-cut for reliable contact with the coating surface. - Delivery set: - Electronic unit with batteries (AA-4 pieces) - Magnetic induction probe CT2-01 - Magnetic induction probe CT20-01 - Carrying case - Precision shim - Base sample - Calibration certificate - Passport - Technical specifications / features: - Measurement range: 2 to 30,000 µm (depending on probe) - Gauging error: 3%+1 µm or 3%+10 µm (depending on probe) - Base minimum thickness: 0.5 mm or 0.8 mm (depending on probe) - Minimum curve radius: 15/55 mm, 20/70 mm, 35/160 mm (depending on probe) - Minimum controlled zone diameter: 10 mm, 20 mm, 50 mm (depending on probe) - Memory: 8 pages, 124 values per page - Electronic unit dimensions: 45 x 100 x 180 mm - Probe dimensions: 10x63 mm, 16x60 mm, 20x98 mm - Operating temperature: -10°C to +40°C - Weight (electronic unit): 0.3 kg - Weight (standard configuration): 0.75 kg
