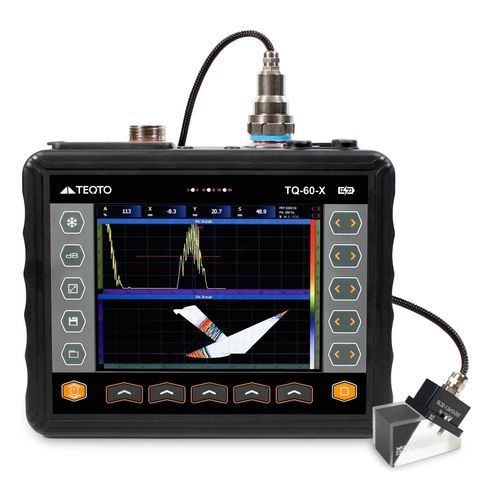

Ultrasonic flaw detector TQ-60-X

phased array

The TQ-60-X is a high-performance ultrasonic flaw detector designed for simultaneous operation with two 64-channel phased array probes and a variety of scanners, including roller scanners and combined PA+TOFD scanners. With an S-scan refresh rate of 100 Hz, it enables high-speed weld inspection from both sides at up to 6–9 meters per minute.The device also supports up to two TOFD channels, meeting global inspection standards. A classic flaw detection mode is included. An advanced software package provides automated data collection, image processing, and 3D visualization for detailed evaluation.Weld inspection using phased array and TOFD techniquesAutomated scanning with 2D scannersDefect detection in metal structuresHigh-speed, high-resolution inspection of complex geometriesPost-scan 3D analysis and reportingOperational advantages:Supports full weld geometry definition, including wall thickness differences, cap bead dimensions, and heat-affected zone widthUniversal, clearly structured probe positioning on the scanner ensures precise data alignment into a unified scanUp to 4 inspection groups can be configured for each phased array probeHigh-resolution imaging with multiple scanning types: – Classic S-scan – Fixed-angle L-scan – Combined LS-scan (compound S-scan with beam swing and aperture movement)Probes characteristics:Phased array (PA) channels:Generator configuration: 16:128 (optional 32:128)Excitation voltage: ±75 VPulse type: Radio pulseSynchronization: by position encoder or by timeGain: 0–80 dB (0.5 dB step)Operating frequency range: 500 kHz – 20 MHzSampling rate: 100 MHzADC resolution: 10 bitsData resolution: 16-bitSignal recording: Digital recording of each waveformMaximum A-scan length: up to 10,000 pointsPulse repetition frequency: Up to 20 kHzNumber of focal laws: up to 1024Sensitivity leveling: 2D by angle and depth (TCG range 60 dB, 32 points with slope up to 50 dB/μs)Focus types: depth, path, distance, autoDecimation: 1:1 / 1:128Single-element (conventional UT) channels:Number of channels: 2 independentExcitation voltage: ±200 VOperating frequency range: 500 kHz – 20 MHzSampling rate: 100 MHzGain: 0–110 dB (steps: 0.1 / 0.5 / 1 / 2 / 6 dB)Processing modes: A-scan, B-scan, TOFDConnectors: 4 x Lemo 000Exploitation:Built-in scan constructor for each group enhances setup flexibilityReal-time and post-scan defect analysis for immediate scanner adjustmentTechnical specifications:Storage: USB flash or Ethernet (10/100 Mbps)USB ports: 2 onboard + hub for 5 additionalData file size: up to 300 MBStandard scanning speed: 6–9 m/minScan length: 5000 measurementsDisplay: 8.5" TFT, 800x600, contrast mode for sunlightPower: 2 swappable batteries, up to 12h operationExternal power: 220 V ACOperating temperature range: from -35 °C to +50 °CDimensions: 280 × 245 × 100 mmWeight: 2.5 kg (with battery)Delivery set:TQ-60-X flaw detector unit2 rechargeable batteriesBattery chargerPower supply (220 V AC)USB storage deviceTransport caseQuick start guideCalibration block (optional)Software package for PC analysisRugged transport caseProduct Details - Accessories (from schema.org):Phased array probes (various configurations)TOFD probe kitsRoller scannersPA+TOFD combination scannersCalibration blocksExternal monitor (optional)Encoder cablesCharacteristics / Technical Specifications:Model: TQ-60-XCategory: Ultrasonic phased array flaw detectorBrand: TEQTOPhased array: 2 x 64-channelTOFD channels: up to 2S-scan refresh rate: 100 HzScanning speed: 6–9 m/minDisplay: 8.5" TFT, 800x600Power: 2 swappable batteries, 12h operation, 220 V ACOperating temperature: -35 °C to +50 °CDimensions: 280 × 245 × 100 mmWeight: 2.5 kg
