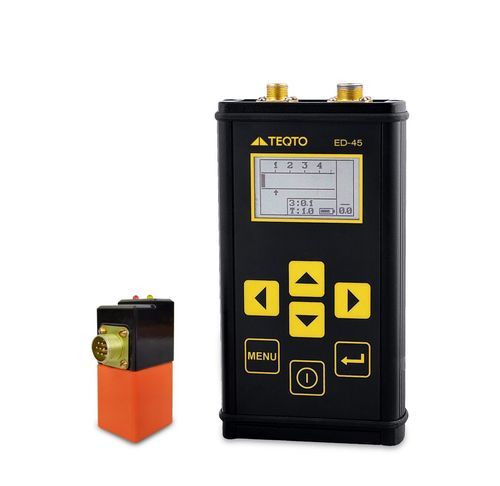

Eddy current flaw detector ED-45

magneticfor metal structuresfor NDT

The ED-45 is a handheld instrument specifically designed for the detection of cracks and measurement of their depth, particularly effective at identifying stress-corrosive cracks within ferromagnetic metal constructions, even beneath layers of corrosion or protective coating. This flaw detector facilitates the measurement of corrosive damage depth and protective coating thickness, combining magnetic and eddy-current methods for flaw detection. This unique feature allows users to inspect products with rough corroded surfaces and measure through varying thicknesses of insulating coating without requiring additional readjustment. - Pipes and pipelines - Oil and gas pipelines - Vessels and pressure vessels - Energy production objects - Structural details, machinery, and mechanisms Operational advantages: - Simultaneous identification and depth measurement of stress corrosion cracks and thickness of insulating coating, and/or corrosion. - Continuous monitoring of insulating coating thickness to detect corrosion fissures. - Real-time adjustment of readings. - Adjustable threshold units for minimally detectable fracture depth and insulating coating thickness. - Intuitive interface. Construction advantages: - Capability to use additional changeable sensors. - Metallic housing of electronic unit for reliable performance in severe field conditions. - Sensors with abrasion-resistant zirconium ceramics contact surface. - Defect detection signalization through lighting and audio signals via loudspeakers or headphones. Exploitation: The Eddy-current flaw detector ED-45 is engineered for use in both industrial and field conditions, requiring no additional adjustment for: - Coarse and corroded surfaces (e.g., preowned pipes, structural parts, mechanisms); - Damp and dirty surfaces; - Surfaces with variable thicknesses of insulating coating. Operational modes: Measurement mode | Parameters Searching for stress-corrosion fractures, with simultaneous detection of their depth and monitoring the thickness of the insulating coating | If thickness of the insulation coating is from 0 to 4 mm Searching for stress-corrosion fractures | If thickness of the insulation coating up to 10 mm Technical specifications: Characteristic | Values Minimal fracture opening | 0.05 mm Minimum detectable fracture length | 10 mm Detectable fracture depth range | 0.3 – 5 mm Fracture depth measurement inaccuracy | 0.2 mm + 0.1h (where “h” is crack depth) Insulating coating thickness measurement range | 0 – 6 mm Insulating coating thickness measurement inaccuracy | 10 % Maximum insulating coating thickness allowing fracture detection | up to 10 mm Exploitation conditions of flaw detector | -15 … +40 °С LBH of electronic module | 150 х 80 х 35 mm LBH of sensor | 25 х 25 х 60 mm Weight of electronic module and sensor | 0.5 kg Power supply | Self-contained from 2 Ni-MH batteries (1.2 V) or similar or from battery type AA 1.5 V ALK Continual working time from battery | 10 hours Control of battery discharge | provided Warranty | 1 year from the day of delivery Delivery set: - Electronic unit - Probe N-45 - Cable to connect sensor to the electronic unit - Two samples of 2mm cracks - Sample of insulating thickness - Accumulator (set of 2 PCs. installed in the device) - Charger - Headphones with adapter - Protective case - Storage and transportation bag Accessories: - Additional interchangeable sensors - Additional cables - Accumulators - Reference samples Characteristics / Technical specifications: - Minimal fracture opening: 0.05 mm - Minimum detectable fracture length: 10 mm - Detectable fracture depth range: 0.3 – 5 mm - Fracture depth measurement inaccuracy: 0.2 mm + 0.1h (where “h” is crack depth) - Insulating coating thickness measurement range: 0 – 6 mm - Insulating coating thickness measurement inaccuracy: 10 % - Maximum insulating coating thickness allowing fracture detection: up to 10 mm - Exploitation conditions: -15 … +40 °С - Dimensions (electronic module): 150 х 80 х 35 mm - Dimensions (sensor): 25 х 25 х 60 mm - Weight: 0.5 kg - Power supply: 2 Ni-MH batteries (1.2 V) or AA 1.5 V ALK - Battery life: 10 hours - Battery discharge control: provided - Warranty: 1 year from delivery
