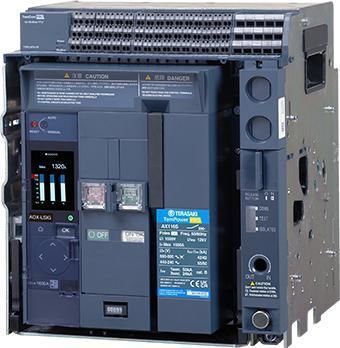

Air-operated circuit breaker TemPower PRO

three-phaselow-voltageremote-controlled

Overview
TemPower PRO air circuit breakers deliver a compact, user‑oriented protective solution for low‑voltage power distribution. The AX series is offered in Fixed and Draw‑out constructions and in Standard, Smart and High‑fault variants. Smart models provide integrated measurement functions and support optional remote monitoring via a communication module. Measurement accuracy complies with IEC61557-12: ±0.5% (current/voltage) and ±1% (active power). Rear connection terminal direction is configurable; quick connection terminals speed up control wiring.

Key features

• Common outline dimensions for 630AF–1600AF draw‑out frames for compact switchboard integration; significant reductions in weight and volume versus previous models.
• Customer‑configurable rear connection direction (horizontal/vertical) for installation flexibility.
• Quick connection terminals for control circuits to reduce installation time.
• Available Over‑current Release options: Standard type and Smart type (Smart includes measurement and data functions).
• Built‑in measurement functions for circuit information; with optional communication module, remote monitoring and management are supported.
• Improved measurement accuracy: IEC61557-12 compliant (±0.5% current/voltage; ±1% active power).
• TemView PRO remote display compatibility via dedicated cable for panel‑mounted readout of Smart OCR values.
• Fixed type available up to 2000 A rated current.

Ratings & typical specifications

• Series name: TemPower PRO (AX series). Models include AX106S/AX108S/AX110S/AX112S/AX116S/AX120S (Standard); AX106H/AX108H/AX110H/AX112H/AX116H/AX120H (High‑fault); AX106D/AX108D/AX110D/AX112D/AX116D (Switch disconnectors).
• Rated currents available: 630 A, 800 A, 1000 A, 1250 A, 1600 A, 2000 A (2000 A for Fixed type).
• Rated primary current of OCR varies by frame (examples: 400, 630, 800, 1000, 1250, 1600, 2000 A).
• Rated breaking capacity (ICU) examples at AC440V: Standard types 50/105 kA; High‑fault types 66/145.2 kA. ICS and ICW values provided per model.
• Outline dimensions (examples): Fixed: 276 x 312.5 x 240 mm; Draw‑out: 288 x 322 x 340 mm; alternatives: 346 x 312.5 x 240 mm / 358 x 322 x 340 mm; Fixed 276 x 312.5 x 279 mm for some 2000A frames.
• Weights (examples): Fixed: 37 kg or 45 kg depending on frame; Draw‑out: typical 24 kg, 30 kg, 42 kg or 55 kg depending on model.

Switch disconnectors — key points

• Models: AX106D, AX108D, AX110D, AX112D, AX116D for frames 630–1600 AF; available in 3 or 4 poles.
• Utilization category: AC‑23 (JIS C 8201‑3 / IEC60947‑3).
• Rated short‑circuit making capacity Icm: 121 kA peak (AC440V).
• Rated short time withstand current Icw and time ratings: examples include AC690V 1s: 55 kA (AC440V 1s: 42 kA); multiple outline dimension patterns per frame.

Options & connectivity

• Optional communication module for remote monitoring of measurement data and circuit information.
• TemView PRO remote display support via special cable for panel‑mounted monitoring of Smart OCR values.
• Some units include open source software; documentation on software and copyright/licensing is provided where applicable.

Applications & installation

• Designed for low‑voltage distribution panels in industrial and commercial installations where compact footprint is required (fits 400 mm switchboard compartment).
• Rear terminal direction configurability and quick connection terminals simplify on‑site wiring and maintenance.
• Available variants cover standard protection, enhanced breaking capacity for high‑fault applications, and measurement/communication needs for remote supervision.
