Construction screening unit 893

for miningfor recyclingmobile

Overview

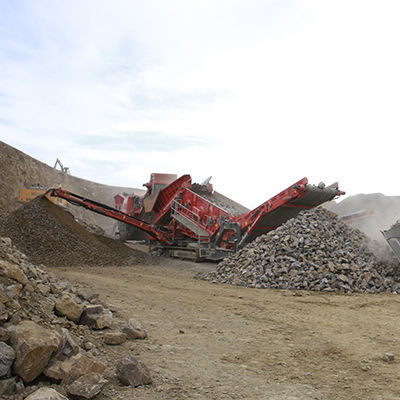

The Finlay® 893+ is a tracked heavy-duty screening plant designed for quarrying, mining, construction & demolition waste, topsoil, recycling, sand, gravel, coal, ore and aggregate processing. The plant processes up to 800 tonnes per hour depending on material and application. Key operational adjustments include a hydraulically adjustable screenbox angle (14°–18°) and a hopper/feeder with variable working positions to optimise feed from mobile crushers or direct feed by excavator/loader. The machine is hydraulically foldable and transport-ready in under 30 minutes.

Key features

• Versatile aggressive screenbox with modular top (6.1 m x 1.83 m) and bottom (5.5 m x 1.83 m) decks.
• Screenbox angle hydraulically adjustable between 14° and 18°.
• Hopper/feeder angle selectable for crusher feed or direct feed operation.
• Screenbox discharge end hydraulically raises to facilitate media access and change.
• All stockpile conveyors have hydraulic angle adjustment and, where specified, hydraulic extending head sections.
• Hydraulically foldable, self-contained plant for rapid site mobilisation and transport.

Hopper / Feeder

• Hopper capacity: approximately 10 m³.
• Feed height range: approx. 3.22 m – 4.134 m.
• Feed-in width variable to match application (approx. 1.698 m – 2.475 m).
• Apron feeder dimensions approx. 1.1 m x 5.18 m.

Screenbox

• Top deck: 6.1 m x 1.83 m (20' x 6').
• Bottom deck: 5.5 m x 1.83 m (18' x 6').
• Screen angle adjustable 14° – 18°.
• Media options: mesh, punch plate, Bofor bars, cascade fingers/tines.
• Total screening area: approx. 21.2 m² (228 ft²).

Conveyors

• Mid-grade conveyor: belt width approx. 900 mm (36”), variable speed; standard discharge height approx. 4.35 m; hydraulic angle adjustment.
• Oversize conveyor: belt width approx. 1.6 m (63”), hydraulically raise/lower with folding head; discharge height approx. 4.55 m.
• Fines conveyor: belt width approx. 1.05 m (41”); standard discharge height approx. 4.5 m.
• All conveyors available with hydraulic extensions for increased stockpile height and simplified transport.

Undercarriage & Mobility

• Tracked undercarriage with track shoe width approx. 500 mm (20”).
• Sprocket centres and raking/gradeability configured for heavy-duty site mobility (raking angle approx. 10°, gradeability approx. 28.9°).
• Hydraulic folding for compact transport; folded and transport-ready in under 30 minutes.

T-Link Telematics

• T-Link telematics hardware and software fitted as standard with multi-year data subscription included; provides fleet, location, usage and machine health data for remote monitoring.

Technical specifications

• Net engine power: Tier 3 – Cat 202 hp (≈151 kW) | Tier 4F / Stage IV – Cat (≈129 kW) depending on configuration.
• Screen: top deck 20' x 6' (6.1 m x 1.83 m).
• Weight (approx.): 106,000 lbs / 48,000 kg.
• Transport dimensions (approx.): H 11'9" / 3.6 m • W 9'10" / 3.0 m • L 58'8" / 17.9 m.
• Working dimensions (approx.): H 18'5" / 5.6 m • W 53' / 16.15 m • L 60'8" / 18.3 m.
• Throughput: up to 800 tonnes per hour (application dependent).
