Construction screening unit 883+ Triple Shaft

mobilefor bulk materials

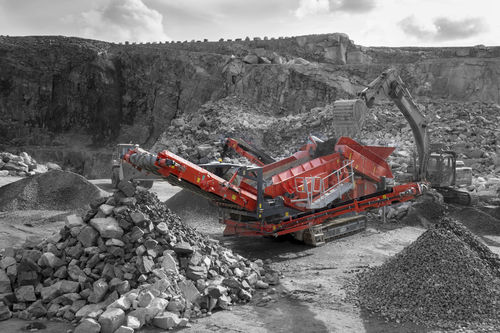

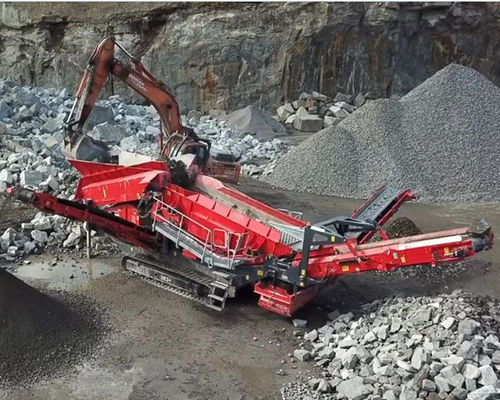

Description The Finlay® 883+ triple shaft mobile scalping screener is designed for dry and sticky applications including quarrying, mining, sand and gravel production, construction and demolition debris and recycling. The triple-shaft screenbox incorporates two full-size 4.8 x 1.53 m (16' x 5') decks and an oval motion stroke to deliver aggressive screening action while reducing plugging and blinding across the decks. The model is available with hybrid power (on-board electric motors plus standard engine) to allow operation from external power or the onboard engine.

Key features

• Higher G-force and larger, adjustable stroke and angle of the triple-shaft screenbox for improved productivity in dry and sticky materials.
• Multiple media options (Bofor bars, finger screens, woven mesh, punch plates) for applications from fine screening to heavy scalping.
• All media configurations are compatible with both standard and triple-shaft screenboxes.
• Banana profile of the bottom deck maximizes fine material separation.

Components and operational details

• Hopper / feeder: Capacity ~7 m3; feed height approx. 3.69 m (12'1"); feed width approx. 2.6 m; variable feed speed 0–25 m/min (0–83 ft/min).
• Screenbox: Top and bottom decks 4.8 x 1.53 m (16' x 5'); discharge end can be raised 500 mm to facilitate mesh changing; total screening area approx. 14.4 m2 (155 ft2).
• Midgrade conveyor: Belt width 800 mm (32"); typical working angle 22°–26°; standard discharge height up to 3.4 m (11'2"); stockpile capacity and extended discharge options available.
• Fines conveyor: Belt width 900 mm (36"); working angle 24°–28°; standard discharge height up to 4.0 m (13'1"); extended discharge option up to 4.8 m (15'9").
• Oversize conveyor: Belt width 1.2 m (48"); working angle 18°–24° with hydraulic assist; discharge height approx. 3.6 m; stockpile capacity variable.
• Undercarriage: Track shoe width 500 mm (19.7"); gradeability up to 28°; dual speed tracks as standard.
• T-Link telematics: Hardware and software fitted as standard with a complimentary seven-year data subscription for telemetry and fleet monitoring.

Technical specifications

• Model: 883+
• Brand: Finlay®
• Net engine power: Tier 3 - Cat 113.3 hp; Tier 4F / Stage IV - Cat 110 hp (approx. Tier 3 - 83 kW | Tier 4F / Stage IV - 82 kW)
• Screen decks: 16' x 5' (4.8 x 1.53 m) — two full-size decks
• Total screening area: approx. 14.4 m2 (155 ft2)
• Operating weight: approx. 68,340 lbs / 31,000 kg
• Hopper capacity: approx. 7 m3 (9.16 yd3)
• Transport dimensions (approx.): Height 11'2" (3.4 m) | Width 9'10" (3.0 m) | Length 48'8" (14.8 m)
• Working dimensions (approx.): Height 13'1" (4.0 m) | Width 41'4" (12.6 m) | Length 48'8" (14.8 m)
• Conveyor examples: mid 800 mm / fines 900 mm / oversize 1.2 m (widths); discharge heights and stockpile capacities depend on configuration.
• Options: Multiple screening media configurations, hybrid dual-power option, extended discharge and conveyor configurations.
