Belt conveyor TC-80

inclineddischargemobile

Product overview

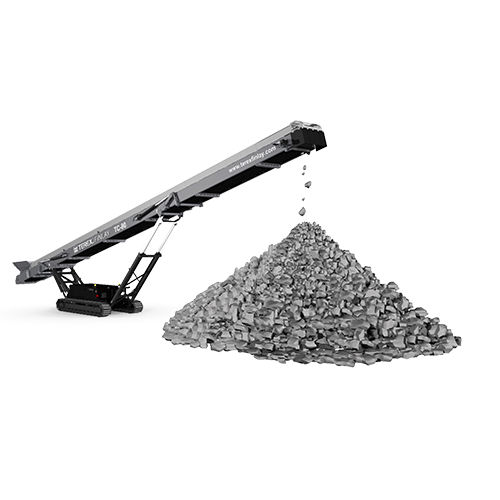

The Finlay® TC-80 is a tracked mobile stockpiler designed to provide efficient, reliable and cost‑effective material stockpiling. The TC-80’s compact foldable design allows packing into a 40ft container for global shipping. It features variable belt speed, hydraulic feed height adjustment and variable discharge height. Available with hybrid power (on‑board electric motors) to operate from external supply or the on‑board engine. The TC-80 is suited to aggregates, sand & gravel, recycling and waste management and helps reduce fuel, maintenance and labour costs while ensuring consistent stockpile quality.

Key benefits

• Integrated safety: hydraulic feedboot height adjustment and pinless deployment of the main conveyor.
• Tracked mobility for easy on‑site redeployment; transportable on a standard low‑loader or packable in a 40ft container for international shipping.
• Hybrid power option with on‑board electric motors for operation from external power or the standard engine.
• 22.8 m (74'10") product conveyor with transfer capability up to 400 tph (application dependent).
• Maximum conical stockpile capacity (37° angle of repose): approx. 3,328 tonnes.

Additional features

• Optional overband magnet with hydraulic kit and support frame.
• Feedboot options: Standard 0.6 m3, Extended 1.6 m3, Biomass 5.24 m3.
• Undercarriage: shoe width 400 mm, sprocket centres 4000 mm, travel speed ~0.9 km/h.

Technical specifications

• Conveyor length: 22.8 m (74'10").
• Belt width: 1050 mm (42").
• Maximum discharge height: 10.41 m @ 25° (34'1" @ 25°).
• Transport dimensions: Width 2.26 m; Length 11.88 m; Height 2.54 m.
• Output potential: listed values vary (551 tph / 500 tph) and text reference up to 400 tph depending on setup.
• Maximum conical stockpile capacity (37°): reported between 3,228–3,328 tonnes (documentation discrepancy).
