Belt conveyor TF-75L

feederfeedingscreening

Overview
The Terex Finlay TF-75L low‑level feeder is engineered to maximise productivity, reduce on‑site handling and improve operational efficiency across a wide range of feed materials. The large 7 m3 (9.2 yd3) hopper, with a feed height of 1.90 m (6'3") and a flared feed width of 3.50 m (11'5"), enables low‑level loading directly from excavators, grab cranes and wheel loaders. Hydraulic folding hopper sides are fitted as standard for safe and rapid on‑site set up.

Key features

• 7 m3 hopper with hydraulic folding sides for safe, low‑level loading.
• Hydraulic variable speed control on the feeder for accurate metered transfer to the main conveyor.
• Pinless deployment of the main conveyor and integrated safety features for quick, secure commissioning.
• Long product/discharge conveyor (22.5 m / 73'10") for high throughput and stockpile transfer.
• Tracked undercarriage and three‑sided feed for easy integration into static and mobile crushing & screening circuits.
• Optional orbital centre‑mounted slew bearing for 360° rotation and enhanced site mobility; hybrid on‑board electrical motor option for external power operation.

Applications & benefits

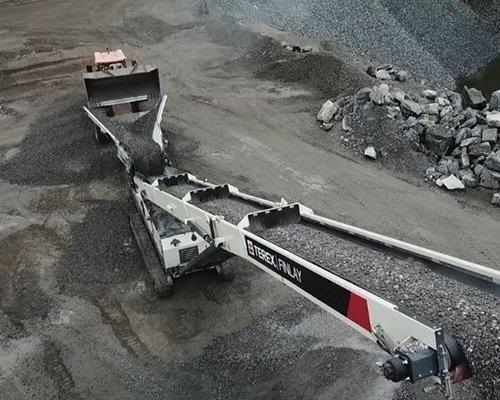

The TF‑75L is suited to jobs requiring low‑level feeding (excavator/loader feed), metered feed to crushers and screens, transfer to long stockpile conveyors and direct loading of ships, trucks and rail wagons. Benefits include reduced material handling, improved site safety through hydraulic features, flexible power options (hybrid/electric) and high throughput capability.

Technical specifications

• Model: TF‑75L
• Brand: Terex Finlay
• Hopper capacity: 7 m3 (9.2 yd3)
• Hopper feed height: 1.90 m (6'3")
• Hopper feed width (flares up): 3.50 m (11'5")
• Product / main conveyor length: 22.5 m (73'10") — overall conveyor length listed: 75' / 22.6 m
• Belt width: 48" / 1.2 m
• Maximum discharge height: 9.8 m (32'2") @ 24°
• Output potential / capacity: up to 600 tph (661 tph US) depending on material and configuration
• Stockpile capacity examples (at 37° angle of repose): approx. 2,776 t (3,060 US t)
• Transport dimensions (approx): Width: 2.75 m (9'); Length: 19.74 m (64'9"); Height: 3.35 m (11')
• Options: orbital centre‑mounted slew bearing (360° rotation); hybrid on‑board electrical motors for external power operation
