Belt conveyor TF-75H

handlingdischargefeeder

Product overview

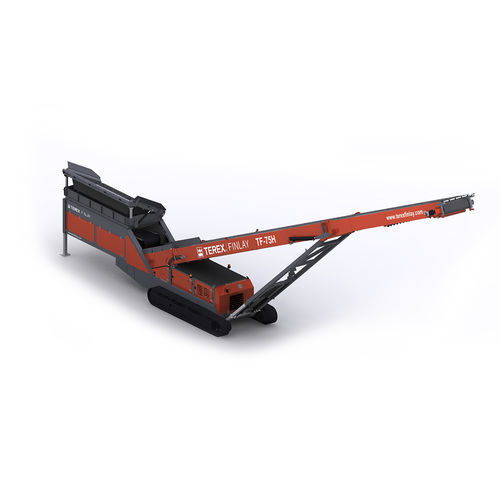

The Terex Finlay TF-75H high-level feeder is engineered to maximise onsite productivity by eliminating double handling and enabling controlled feed to crushing and screening plants. The hopper/feeder capacity is 7 m³ (9.15 yd³) and accepts direct loading from excavators, wheel loaders and auxiliary machines.

Applications
Used for metered or controlled feed in crushing and screening, feeding auxiliary equipment, connecting to additional conveyors for material transfer and direct loading/unloading of ships, trucks and rail wagons. Optional orbital centre-mounted slew bearing provides 360° rotation for improved site mobility.

Key features

• Pinless deployment of the main conveyor for faster on-site set up and safer operation.
• Hydraulic variable speed control of the feeder for efficient transfer from hopper to main discharge conveyor.
• Available hybrid configuration with on-board electric motors to operate from external power supply or standard on-board engine.
• 22.5 m (73'10") discharge conveyor with capacity to transfer up to 600 tph (US 661 tph), dependent on material and conditions.
• Maximum stockpile capacity based on 37° angle of repose: 2,776 tonnes (3,060 US tonnes).

Additional product details

• Hopper / feeder: Capacity 7 m³ (9.15 yd³); Feed height without grid 2.6 m (8'6"); Feed in length without grid 4.1 m (13'5"); Drive: hydraulic variable speed via high torque gearbox.
• Conveyor: Length 22.5 m (73'10"); Belt width 1.2 m (48"); Max discharge height 9.8 m (32'2"); Max stockpile capacity (37°) 1,735 m³ (2,270 yd³); Hydraulic discharge height adjustment; Hydraulic fold for transport.
• Undercarriage: Heavy duty tracked undercarriage, 4,300 mm centres, 400 mm shoe.
• Safety: Inbuilt safety features including pinless main conveyor deployment.
• Hybrid technology: On-board electric motors available to enable operation from external power or on-board engine.

Technical specifications

• Conveyor Length: 75' / 22.5 m
• Belt Width: 48" / 1.2 m
• Max Discharge Height: 32' 2" @ 24° / 9.8 m @ 24°
• Transport Dimensions: Width 9' / 2.75 m; Length 63' 11" / 19.5 m; Height 10' 2" / 3.12 m
• Output Potential: up to 600 tph (US 661 tph) (material dependent)
• Hopper capacity: 7 m³ (9.15 yd³)
• Maximum stockpile capacity (37°): 2,776 tonnes (3,060 US tonnes)
