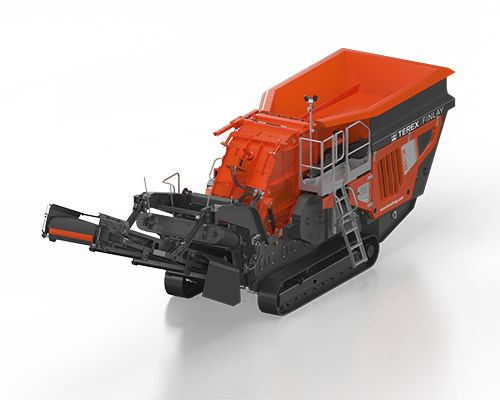

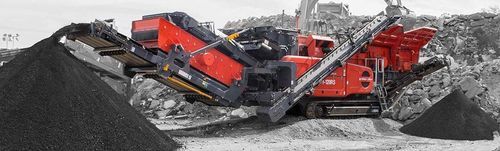

Impact crusher IC-110

mobilecompact

Overview
The compact impact crusher IC-110 is engineered for high productivity in quarrying, demolition debris processing and recycling of reinforced concrete and asphalt. The machine features a direct-drive impact chamber of Ø1034 x 1000 mm (Ø41.5" x 40") with variable rotor speed and hydraulically assisted apron adjustment. A hydraulic overload protection system is fitted as standard. An optional lower hopper feeder is available for recycling and demolition applications.

Applications

• Quarrying
• Mining
• Demolition
• Recycling of concrete and asphalt

Key features

• Direct-drive impact chamber Ø1034 x 1000 mm with independent belt tensioner for rapid adjustment
• Advanced electronic control monitors and regulates the speed of the vibrating grizzly feeder for consistent feed to the impact chamber
• Fully hydraulically assisted apron adjustment for safe and efficient setting
• 4-bar rotor design with two aprons for high reduction ratios and consistent product shape

Hopper / Feeder

• Capacity: 3.3 m³ (4.3 yd³)
• Feed height: 3.13 m (10'3")
• Rear feed width: 2.00 m (6'7")
• Screen area (if fitted): 1500 x 950 mm (5' x 3'2")

Main conveyor

• Belt width: 1000 mm (40")
• Full-length main conveyor with impact bars at the feed point
• Main conveyor hydraulically lowered for maintenance
• Discharge height: 3.42 m (11'3")

Impact chamber

• Rotor diameter: Ø1034 mm (41.5")
• Rotor width: 1000 mm (40")
• Feed opening: 1030 mm x 790 mm (41" x 31")
• Rotor speed range: 630–800 rpm
• Drive type: direct drive via clutch with hydraulic overload protection

T-Link telematics
T-Link telematics hardware and software with a seven-year complimentary data subscription are fitted as standard to support remote monitoring and fleet management.

Chassis

• Optional belt width on carrier: 400 mm (16")
• Gradeability: 30°
• Track speed: 2-speed drive motor as standard

Technical specifications

• Net engine power: Tier 3 - Volvo 315 hp | Tier 4F / Stage V - Volvo 315 hp (approx. 235 kW)
• Rotor size: Ø41.5" x 40" / Ø1034 mm x 1000 mm
• Operating weight: 63,934 lbs / 29,000 kg
• Transport dimensions: Height 10'5" | Width 8'4" | Length 32'11" / Height 3.16 m | Width 2.55 m | Length 10.00 m
• Working dimensions: Height 12'2" | Width 17'1" | Length 41'5" / Height 3.70 m | Width 5.20 m | Length 12.62 m
• Rotor speed: variable 630–800 rpm; 4-bar rotor
• Feed: vibrating grizzly feeder with electronic speed control; optional lower hopper feeder for recycling/demolition
