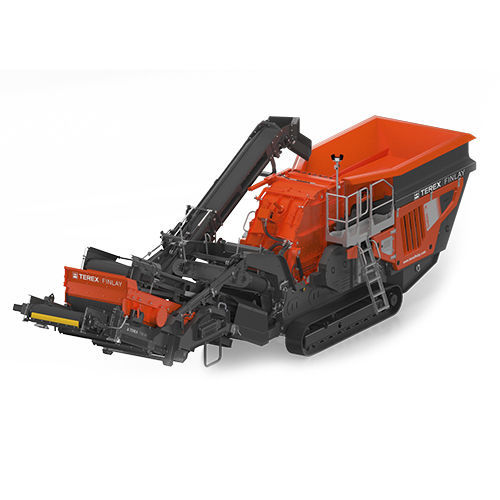

Impact crusher IC-110RS

mobilefor building materialssecondary

Overview
Mobile impact crusher IC-110RS by Terex® Finlay integrates a direct-drive horizontal impact chamber and an onboard single-deck screen on a tracked mobile chassis. Designed for quarrying, demolition, recycling and contract crushing where a compact, transportable plant with rapid set-up is required.

Key features

• Direct-drive impact chamber with variable rotor speed to optimise product shape and fuel efficiency (rotor Ø1034 mm x 1000 mm).
• Removable single-deck screen 2.74 m x 1.5 m for rapid conversion to open-circuit operation.
• Hydraulically adjustable aprons and hydraulic overload protection for the impact chamber.
• Pivoting recirculation conveyor for closed-loop recirculation or stockpiling of oversize material.
• Onboard T-Link telematics supplied as standard (subscription conditions per manufacturer).

Modules / components

• Hopper / feeder: capacity 3.3 m3; feed height 3.13 m; rear width 2.0 m; feedbox screening area 1500 x 950 mm.
• Main conveyor: belt width 1000 mm, full-length with impact bars at feed point; hydraulic lowering for maintenance; discharge height approx 3.42 m.
• Fines conveyor: belt width 1200 mm; discharge height approx 3.0 m.
• Recirculation conveyor: belt width 500 mm; discharge height up to 3.8 m; hydraulically pivoting for mode change.

Applications and operation
Configured for recycling of concrete and asphalt, demolition arisings and quarry operations. Quick removal of the screen and conveyors allows operation in open circuit for high-capacity primary or secondary crushing. Compact transport dimensions and tracked undercarriage support easy site mobilisation and contractor use.

Technical specifications

• Model: IC-110RS
• Brand: Terex® Finlay
• Net engine power: Volvo 315 hp (Tier 3 / Tier 4F / Stage V configurations indicated).
• Rotor size: Ø1034 mm x 1000 mm; feed opening 1030 x 790 mm; rotor speed range 630–800 rpm.
• Hopper capacity: 3.3 m3.
• Operating weight: approx 35,600 kg.
• Transport dimensions (approx): Height 3.18 m | Width 2.9 m | Length 14.76 m.
• Screen size: 2.74 m x 1.5 m (single-deck).
• Conveyor widths: main 1000 mm, fines 1200 mm, recirculation 500 mm.
• Options: underpan feeder, automatic secondary apron adjustment, additional hydraulic protections.
