Impact crusher IC-100RS

mobilecompact

Overview

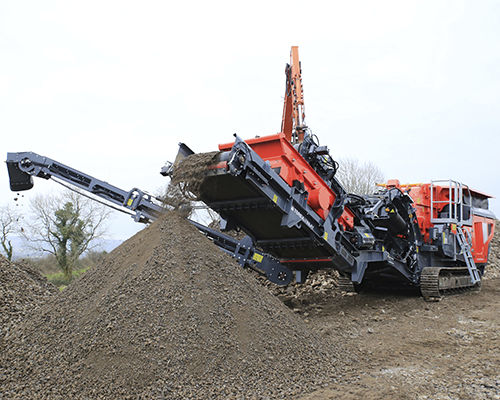

Finlay® IC-100RS mobile impact crusher combining a Ø860 mm x 830 mm direct‑drive horizontal rotor with variable‑speed control and an integrated 2.44 m x 1.2 m single‑deck screen. The screen/recirculation module is removable for open‑circuit operation. Intended for quarrying, demolition and recycling applications on a compact mobile platform.

Applications

• Quarrying
• Mining
• Demolition
• Recycling (concrete, asphalt)

Key features

• Direct‑drive horizontal impact crushing chamber Ø860×830 mm with independent belt tensioner.
• Variable rotor speed control to adapt product shape and throughput.
• Hydraulic apron adjustment with overload protection for non‑crushable ingress.
• Integrated single‑deck screen 2.44 m x 1.2 m; quickly removable for open‑circuit operation.
• Electronic control system monitors and regulates VGF speed for consistent feeding.
• Recirculation conveyor hydraulically swivelled between closed‑loop and stockpile modes.

Components

• Main conveyor: nominal belt width 900 mm; full‑length belt with impact bars at feed; foldable head section; maintenance‑lowering facility; discharge height ≈3.0 m.
• Crushing chamber: rotor Ø860 mm × 830 mm; feed opening approx. 860×720 mm; rotor speed range 750–900 rpm; direct drive via clutch.
• Undercarriage: track shoe width 400 mm; gradeability ≈30°; two‑speed track motor as standard.
• Bypass conveyor (option): belt width 500 mm; discharge height ≈2.48 m; hydraulically foldable.
• Recirculation conveyor: belt width 500 mm; stockpile discharge height ≈3.1 m; hydraulically rotatable between modes.
• Fines conveyor: belt width 1000 mm; discharge height ≈2.5 m.
• Screen: single‑deck 2.44×1.2 m; screen angle ≈25°; total screening area ≈2.93 m²; RS module removable.
• Hopper / feeder: hopper capacity ≈2.6 m³; feed height ≈3.0 m; rear width 2.0 m; pre‑screen area 1080×810 mm.

Technical specifications

• Net engine power: Tier 3 – John Deere 260 hp (≈194 kW) | Tier 4F / Stage V – Volvo 275 hp (≈205 kW).
• Rotor size: Ø860 mm × 830 mm (Ø34” × 33”).
• Rotor speed range: 750–900 rpm.
• Operating weight: ≈29,300 kg (64,595 lbs).
• Transport dimensions: Height ≈3.0 m | Width ≈2.55 m | Length ≈13.3 m.
• Working dimensions: Height ≈3.8 m | Width ≈5.13 m | Length ≈13.3 m.
• Hopper capacity: ≈2.6 m³.
