Graphic analyzer AFLEX-6300
for electrical networkspower qualityharmonic

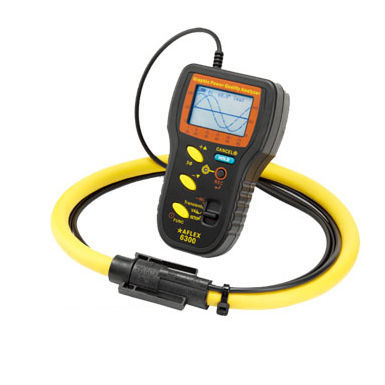

Graphic analyzer - AFLEX-6300 - TES Electrical Electronic Corp. - for electrical networks / power quality / harmonic
Graphic analyzer - AFLEX-6300 - TES Electrical Electronic Corp. - for electrical networks / power quality / harmonic
Add to favorites
Compare this product
Go to the TES Electrical Electronic Corp. website for more information

Characteristics

Application domain
for electrical networks
Measured value
harmonic, power quality
Configuration
portable
Mode of use
automatic
Other characteristics
graphic

Description

Power Quality Analysis for Single and Balanced Three Phase System Harmonic Analysis of Voltage and Current (1 to 50th order) True RMS measurement of V with 0.5% basic accuracy True RMS measurement of A with 1% of range basic accuracy Graphic Waveform of Voltage and Current Graphic Phasor Diagram Transient Detection and Logging of Swell, Dip, and Outage Fast peak function (39μs for 50 Hz, 33μs for 60Hz) Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power Power factor (PF), phase angle (Φ), and energy (WH, KWH) Measurement of balanced 3Φ Power Quality Programmable VT ratio from 1 to 3000 Hold functions Auto power off function in 15 minutes
