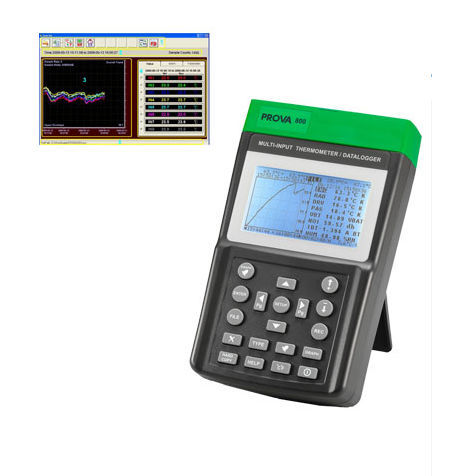

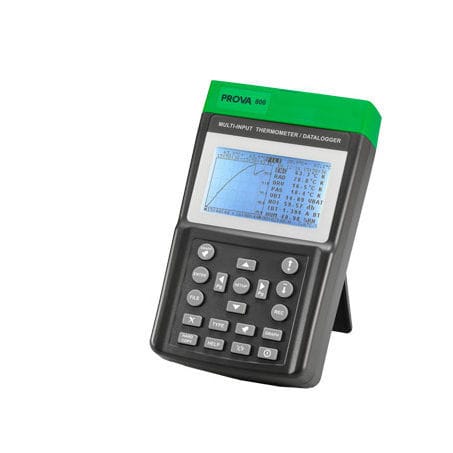

Thermocouple thermometer PROVA-800

with LCD displayanalog outputRS-232

Analysis for thermal profile and thermal distribution. 8 input temperature measurement/data logging (℃/℉) Graphic display of overall trend for each input 4.5” STN LCD (240 x 128) with backlight Timers for the durations out of HI and LO limits Selection of 11 types of thermocouple (K, J, E, T, R, S, N,…) Easy socket for thermocouple mini connector Basic accuracy 0.1% ± 1 ℃ (K type) Programmable Hi-Lo alarm for each input. Display of max and min values for each input Sampling Rate 8 Inputs / 1 second 24 Hour Recording with Alkaline Batteries of 2400mAH Standard 2G SD memory card (stores 3.8-year data) Optional 8G SDHC memory card SD card directly read by PC Easy data file management (Read and Delete functions) Built-in calendar clock Independent Input Setup (type of thermocouple, Hi-Lo Isolated Input Protection of 350Vp-p between any two alarm values, name of Engineering Unit)inputs Programmable Engineering Unit (E.U.) to integrate Analog Output (-50 to 60 mV) from instruments (e.g. Sound level meter, Humidity meter, Current adaptor) Screen hardcopy into files Paperless Recorder Ready to use package (Thermocouples, Memory Card, and Batteries etc.) General Specifications: Battery Type: 1.5V AA alkaline batteries x 8 AC Adaptor: DC Regulated 12V / 300mA output AC 110V or 220V Input LCD 4.5” STN LCD (240 x 128) Power Consumption: 100mA (with backlight); 70mA (without backlight) Cold Junction Compensation Accuracy: ±0.5℃ / ±0.9℉ Temperature Coefficient 0.01% of F.S. / ℃ Isolated Input Protection between any two inputs: 350Vp-p Dimension: 257(L) x 155(W) x 57(H) mm 10.1" (L) x 6.1" (W) x 2.2" (H) Weight: 1160g / 40.9oz (Batteries included)
