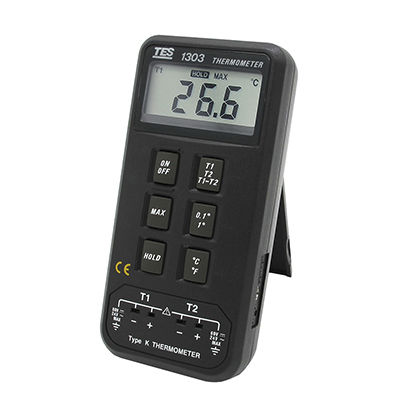

Thermocouple thermometer TES-130 seriesdigital°C°F
Add to favorites
Compare this product
Characteristics
- Technology
- thermocouple
- Display
- digital
- Units of measurement
- °C, °F
- Configuration
- hand-held
- Other characteristics
- dual-channel, single-channel, differential
- Temperature
Max.: 1,300 °C
(2,372 °F)Min.: -50 °C
(-58 °F)- Precision
0.3 %, 0.5 %, 0.75 %
- Resolution
0.1 °C, 1 °C
(32.18 °F, 33.8 °F)
Description
Type “K” Thermocouple Input
Max Hold Function
Data Hold Function
Room Temperature Compensated
Aux output JACKS
T1 & T2 dual points display
T1 – T2 differential measurement
Flip-up stand
Auxilitary Outputs
(for Data Recording)
1mV/°C (°F)…at 0.1°C/0.1°F range
0.1mV/°C (°F)…at 1°C/1°F range
Temperature Coefficient
Less that 0.1 times the applicable accuracy
Input Protection
60V DC or 24 Vrms AC maximum input voltage on any Combination of input Connector
Sampling Rate
2.5 times/sec
Operating Conditions
0°C ~ 50°C (32°F ~ 122°F)
0 ~ 80% R.H.
Power Source
One 9V battery (006P or IEC6F22)
Size/Weight
135mm(L)×72mm(W)×31mm(H) / 235g
Battery Life
200 hours (1300) / 100 hours (1303) (Alkaline Battery)
Accessories
Battery, Instruction, Manual
