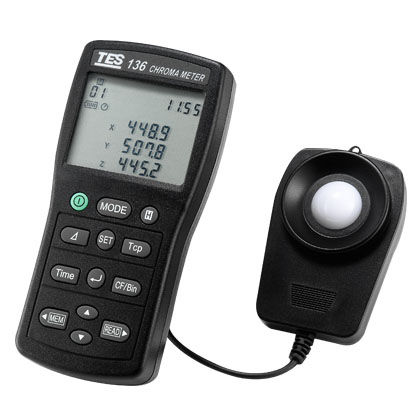

Handheld chroma meter TES-136

for luminance measurementfor color analysis

Triple Display, 4-digit LCD reading. LED Color Bin select function (x,y) or (Tcp,Δuv). User calibration function. User reference value setting function. Illuminance maximum/minimum measurement function. Data Hold function. Data memory and read function. Data logger function. USB Interface. Temperature drift - Ev: ±5%rdg±2dgts, xy: ±0.008 Humidity drift - Ev: ±3%rdg±2dgts, xy: ±0.005 CIE photopic f ’1 - ≦8% Cosine response f2 - ≦3% Measuring Rate - 1 sec Photosensor - Silicon photocell Data Memory Capacity - 80 sets. (Direct reading from LCD display) Data Logger Capacity - microSD CARD Operating / Storage Conditions - 0°C to 50°C <80% RH / -10°C to 60°C <70%RH Power Source - 6 pcs AAA size Battery Battery Life (typical) - 50 hours Photosensor Lead Length - 150 cm (approx.) Photosensor Dimensions - 92(L) × 60(W) × 29(H)mm Dimension - 150(L) × 72(W) × 35(H)mm Weight - Meter: 235g, Photosensor: 210g Accessories - Carrying case, Instruction manual, Battery, CD software,USB cable.
