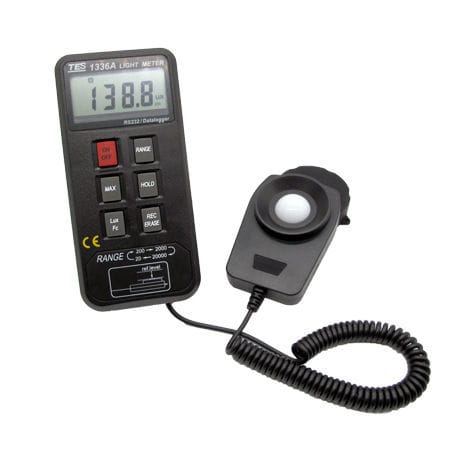

Digital light meter TES-1336A

with data loggerUSB

Measurement of luminous intensity (PC Software) Spectrum of photo sensor meets C.I.E. photopic curve V(λ) 16000 Records Data logging capacity Lux/Fc /MAX hold/Data-Hold function USB interface (software included) Measuring range 20/200/2000/20000 Lux, 20/200/2000/20000 Fc Luminous intensity (cd) Intensity= illuminance×(length)2 Length: feet (Fc) meter (Lux) Resolution 0.01 Lux Accuracy ±3% rdg ±0.5% f.s (calibrated to standard incandescent lamp, 2856 K) CIE photopic f ’1 ≦6% Overrang display OL Record (Data logging) 16000 Point Data logger Sensor Silicon photo diode Sensor lead length 150cm (approx) Sensor probe 87.5(L) x 60(W) x 29(H) mm Main instrument Dimensions and weight 146(L) x 70(W) x 39(H) mm/300g (approx) Power source One 9V battery Battery life 50hrs (approx) Operating Storage Condition 0℃ ~ 40℃ (32℉~104℉) below 80% RH -10℃ ~ 60℃ (14℉~140℉) below 70% RH Accessories Carry case, instruction manual, battery, RS-232 to USB cable, software for windows, screwdriver.
