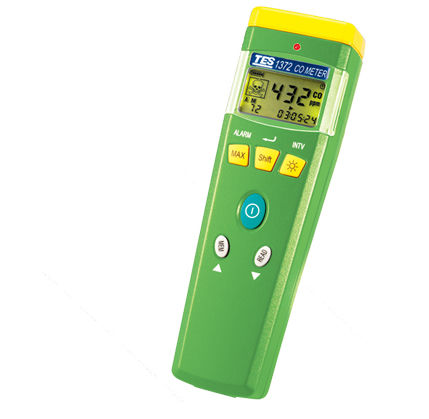

CO air quality meter TES-13 series

portableRS-232with display

CO : 0 ~ 999 ppm range. MAX Hold with Time stamp. Alarm level setting. Replaceable sensor extends meter life. Stabilized electrochemical CO sensor. Automatic sensor zeroing upon start-up. Auto power-off time setting. Typical three year sensor life, one year calibration cycle. Manual data memory and read function (99 sets). Auto data memory and read function (999 sets). Backlight display function. Measuring Range 0~ 999 ppm Resolution 1ppm Accuracy ±5% of reading or ±5ppm, which is greater. Sensor Type Stabilized electrochemical Gas-specific (CO) Typical Sensor Life 3 years Auto Data Memory Capacity 999 sets (Direct reading from LCD display) Manual Data Memory Capacity 99 sets (Direct reading from LCD display) Auto Datalogger Capacity 11340 sets (Only download by PC). (1372R) Operating Conditions 0℃~ +50℃ 15 ~ 90% R.H. Power Source 9V battery Battery Life Approx. 100 hours Size 173(L) × 50(W) × 50(H)mm Weight Approx. 180g with battery. Accessories Instruction Manual, Battery & Carrying case. (1372) Instruction Manual, Battery, CD Software, RS232 Cable & Carrying case. (1372R)
