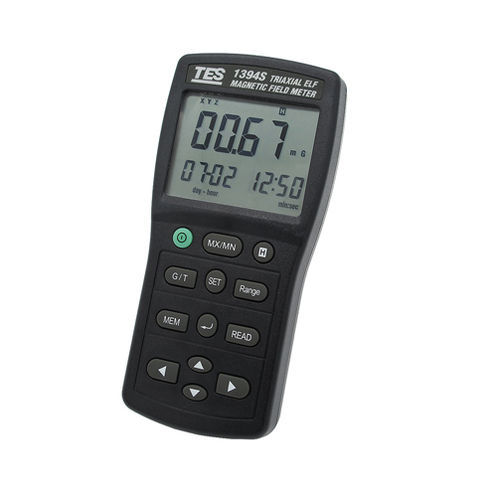

Electromagnetic field measuring instrument TES-139 series

radiationdigitalindustrial

The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices. The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50Hz/60Hz. Display micro Tesla & milli Gauss in the same tester. Data hold function. 2000 Datalogging capacity. Manual data memory capacity 99 sets. Auto data memory capacity microSD CARD . Range 20/200/2000 milli Gauss 2/20/200 micro Tesla Resolution 0.01/0.1/1 milli Gauss 0.001/0.01/0.1 micro Tesla Number of Axis Triple axis Band Width 30 Hz to 2000 Hz Accuracy 20mG/2μT ± (3% + 30d) ±(3%+3d) at 50Hz or 60HZ ±(5%+3d) at 40Hz to 200HZ −3dB at 30Hz to 2000HZ Over-Input Display shows “OL” Auto data memory microSD CARD . (1394S) Sampling Time Approx. 0.5 second Battery 6 pcs size AAA (1393 Only Use Alkaline Battery) Battery Life Approx. 33 hours (1393) / Approx. 40 hours (1394S) Operating Temp and Humidity 0°C to 50°C (32°F to 122°F) below 80%RH Storage Temp and Humidity -10°C to 60°C below 70%RH Weight Approx. 165g (1393) / Approx. 225g (1394S) Dimension 150(L) × 72 (W) × 35(H) mm Accessories Included Operation Manual, 6 pcs size AAA. (1393) Operation Manual, 6 pcs size AAA, CD Software, micro-USB Cable. (1394S)
