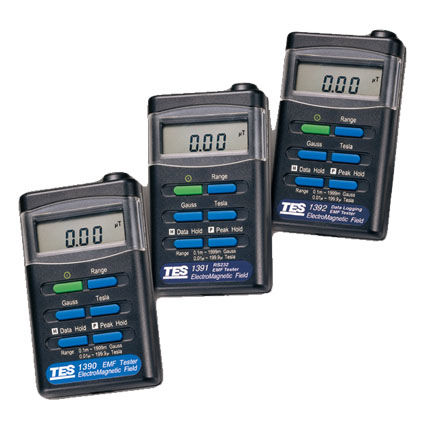

Electromagnetic field measuring instrument TES-139 series

radiationdigitalindustrial

The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices. The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50Hz/60Hz. Display micro Tesla & milli Gauss in the same tester. Data hold, Peak hold function. RS-232 interface / software. Display 3-1/2 digits. Max. indication 1999 Range 200/2000 milli Gauss 20/200 micro Tesla Resolution 0.1/1 milli Gauss 0.01/0.1 micro Tesla Number of Axis Single axis Band Width 30 Hz to 300 Hz Accuracy ±(3%+3d) at 50Hz or 60HZ Over-Input Display shows “OL” Sampling Time Approx. 0.4 second Datalogging capacity 15000 sets (1392) Battery 4 pcs size AAA (Alkaline Battery) Battery Life Approx. 60 hours Operating Temp and Humidity 0°C to 40°C (32°F to 104°F) below 80%RH Storage Temp and Humidity -10°C to 60°C below 70%RH Weight Approx. 165g Dimension 111(L) × 64 (W) × 34(H) mm Accessories Included Operation Manual , 4 pcs size AAA (Alkaline Battery) [CD Software, RS-232 Cable] ⇒ (1392)
